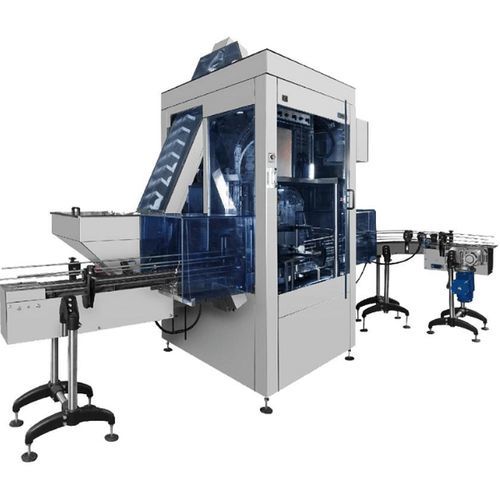

Screw-on capping machine

press-onintermittent-motionaerosol

Overview
Mastercap automatic indexing capping machine designed for automatic application of screw caps, press-on caps and tamper-evident closures to bottles and containers. Built for fast, accurate and repeatable capping to improve line throughput. Supports aerosol overcaps and inserts.

Key product features

• High-efficiency capping
  Speeds up to 3300 caps per hour to improve line throughput and ROI.
• Cap diameter range
  Handles caps from 20–80 mm, covering standard consumer, industrial and pharmaceutical formats.
• Construction
  304 stainless steel frame and hygienic parts suitable for industrial and hygienic environments.
• Waste reduction
  “No container, no cap” and queue sensing to minimise cap waste.
• Safety
  Capping zone protected by interlocked guards.
• Variable torque
  Magnetic clutch for adjustable torque to suit cap types and prevent overtightening.
• Low-level cap detection
  Cap track detection to avoid production interruptions.
• Cap feed system options
  Automatic cap elevator, rotary disc feeder or vibratory bowl feeder depending on cap type and orientation requirements.

Cap feeding options (details)

• Automatic cap elevator – for most screw and press-on caps.
• Rotary disc feeder – stabilises and continuously orients caps.
• Vibratory bowl feeder – for small or lightweight caps requiring precise orientation.

Applications
Fully automatic application of screw caps, press-on caps, tamper-evident closures, aerosol overcaps and inserts on bottles and containers; suitable for pharmaceutical, cosmetic, food & beverage, chemical and industrial packaging lines.

Technical table (summary)
Typical product output — Up to 55 containers per min
Machine height — 2.4–2.8 m (approx)
Machine width — 1.4 m (approx)
Machine length — 2.7 m (incl. tunnels, approx)
Crate dimensions — 40ft HC container
Standard electrical supply — 400 VAC, 3PH + N + Earth 50/60 Hz
Compressed air working pressure — 6 bar (0.6 MPa)
Cap range — 20–80 mm

Service & maintenance
Hygienic parts in 304 stainless steel. Recommended visual inspections and routine maintenance to ensure long-term performance.

Technical specifications

• Throughput: up to 3,300 caps per hour (up to ~55 containers/min)
• Cap diameter: 20–80 mm
• Construction: 304 stainless steel
• Typical machine height: 2.4–2.8 m (approx)
• Typical machine width: ~1.4 m (approx)
• Typical machine length: ~2.7 m (including tunnels, approx)
• Crate/container for shipping: 40ft HC container
• Electrical supply: 400 VAC, 3-phase + neutral + earth, 50/60 Hz
• Compressed air: 6 bar (0.6 MPa)
• Cap feeding: automatic cap elevator, rotary disc feeder, vibratory bowl feeder
• Torque control: magnetic clutch for variable torque adjustment
• Detection & waste reduction: low-level cap detection; “no container, no cap” queue sensing
• Safety: interlocked guarding on capping zone
