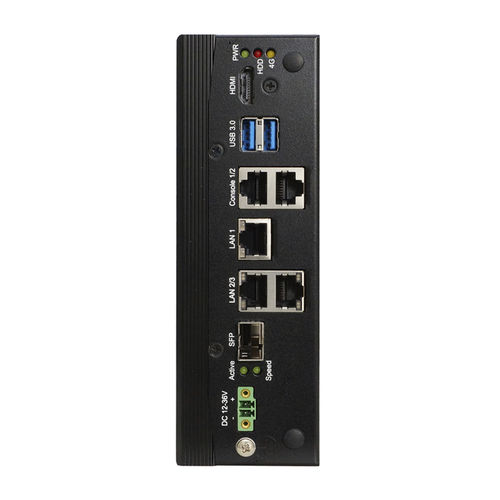

The SCB-6013 series are rugged design intelligent DIN-rail type Fanless hardware platforms and designed for Industrial Firewall Appliance. The SCB-6013 series implement isolated protection design on Serial, Ethernet, power input for supporting comprehensive tough industrial firewall appliance. The systems provide the power input range from 12 to 36 VDC that allows you to use the same type of power source at different system voltage requirement around the global.The SCB-6013 series includes two models according to different communication requirements. The SCB-6013 is consisted of 3 isolated Ethernet RJ45 GbE,1 SFP, 2 Console and 2 isolated Serial ports (RS-232). Furthermore, the SCB-6013 models with an extended operating temperature range of -20 to 70°C are also available.
Fanless Design with lower power consumption
Intel Atom X5-E3940(4C/1.8Ghz)/X5-E3930(2C/1.6Ghz) CPU onboard
Built-in 8GB eMMC Flash
3x RJ45 Port + 1x SFP connector + 2x USB 3.0 Port
Full size MiniPCIex1, mSATA x1
Wide-Voltage support (12V~36V)
Extended-Temperature support(-20~70 Degrees)
