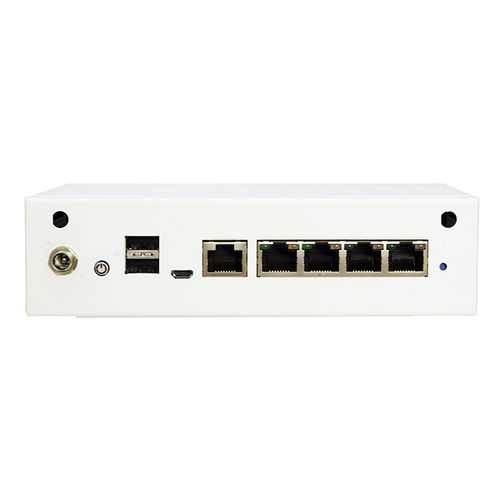

Fanless network appliance SCB-6906
desktopIntel® Celeron®

fanless network appliance
fanless network appliance
fanless network appliance
fanless network appliance
fanless network appliance
Add to favorites
Compare this product


Characteristics

Options
fanless, desktop
Processor
Intel® Celeron®

Description

The SCB-6906 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® Celeron®/ Atom Apollo Lake-I low voltage processors.The SCB-6907 supports 2GB on-board DDR3L memory. In order to provide the best network performance and best utilization, the storage interfaces include eMMC, and it affords four Copper GbE on rear-panel. The rear panel also has two USB 2.0 ports, one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6906 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant Slim Fanless Network System Ideal Noiseless System for Silence environments Use Intel Celeron N3350 / Pentium N4200 and Atom E3930/E3940/E3950 DDR3L 1866MHz memory, max support 2GB Max 4x RJ45 GbE ports eMMC flash, max support 64GB Expansive I/O with 2x USB 2.0, 1x mini-PCIe socket and 1x Console port
