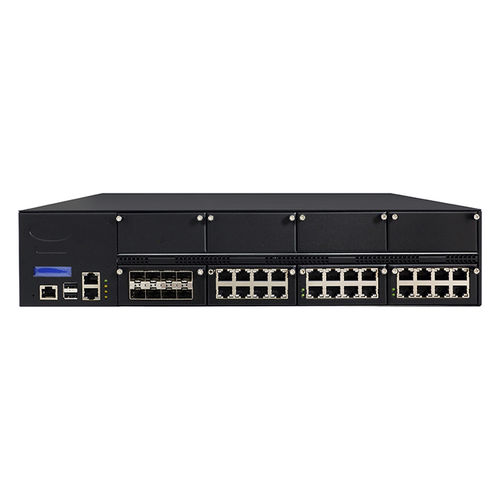

The SCB-1820 is 2U Rack-Mount hardware networking system for fit all networking solutions by using New Intel® 14nm micro-architecture Coffee-Lake-S platform with efficient performance processor Xeon E3-1200 V6 family / 8th Core i7/i5/i3 and the Intel® C246 series chipse. With the next generation 3-D tri-gate design, the adoption of the 8th generation Intel® Core™ processor comes with the promise to enhance processor performance, while lowering the TDP. A new socket type, LGA 1151, has also been released for the die-shrinking architecture.The SCB-1820 is enhancement in computing performance; system responsiveness with Intel® E3-1200 V6 processor, supporting Four DDR4 Non-ECC/ECC DIMM slots (up to 2666 MHz) and maximum memory capacity is up to 64 GB. The SCB-1820 can support up to 8 NIC modules, supporting multiple Ethernet module bays for flexible port configuration; such as 10Gigabit SFP+, Gigabit copper with LAN BYPASS function or not and Gigabit fiber ports. The maximum capable Ethernet port is up to 64GbE ports.The strong IO elements of SCB-1820 include two management Ethernet ports, a console port, two USB ports, LEDs for power/ HDD/ 2x GPO. In addition, the SCB-1820 also supports inside 2x 2.5” SATA HDDs/SSDs & 1x 3.5” HDD swappable and onboard m-SATA slot & CF for basic network storage application.
Support Intel® Xeon® processor E3-1200 V6 & 8th Core i7/i5/i3 Series processor, LGA 1151
2 channel DDR4 ECC/Non-ECC 2133 MHz memory, max support 64GB
Max support 8x PCIe(x8) slots for expansion LAN module, up to 64 GbE Copper / Fiber ports
2x 2.5” or 3.5” HDD/ SSD
Support 2U ATX Redundant Power Supply
