Industrial firewall SCB-6012A/B

industrial firewall
industrial firewall
industrial firewall
Add to favorites
Compare this product


Characteristics

Options
industrial

Description

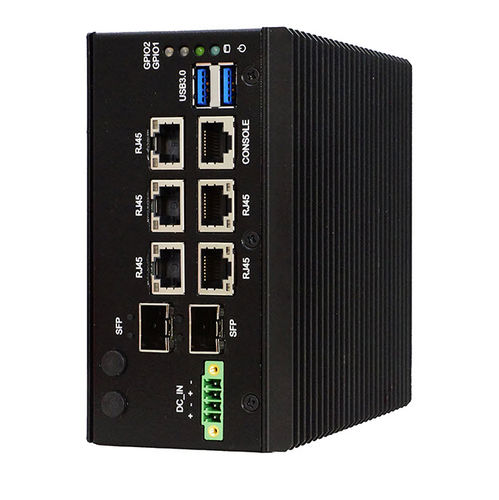

SCB-6012A/B is Industrial Firewall Appliance is a compact fanless industrial grade appliance with Intel® "Apollo-lake-I"Atom™ X5-3930/X5-E3940 CPU. Deployed in remote, unmanned and harsh environments, SCB-6012A supports 1x SFP, 2x RJ45,2x USB 3.0 Port,1xconsole Port and extended operating temperature from -20 to 70 degrees SCB-6012B supports 2x SFP, 5x RJ45,2x USB 3.0 Port, 1x Micro SD, 1x Micro SIM, 1xconsole Port and extended operatingtemperature from -20 to 70 degrees.It also boosts for its flexible design with versatile mounting options (DIN-Rail) and Ethernet LAN configuration, making it perfectfor performing at critical infrastructure such as Oil refinery, Substation, Power plants, Manufacturing factories Extruded aluminum and heavy-duty steel Fanless design with lower power consumption Intel Atom x5-E3940 / x5-E3930(Apollo Lake) onboard DDR3L 204 Pin SO-DIMM and support DDR3L 1333/1600/1866 memory module Reserved 2x8 pin VGA connector/1x M.2 2242 socket(PCIe and SATA III Port) 1x Full mini-PCIe socket(PCIex1 and USB 2.0 Signal) for WIFI/4G LTE Module 1x Serial Port (RJ45 type), 2x USB 3.0 Port, SIM Card Holder, Micro SD socket 4 in & 4 Out with 2x5 pin DIO connector

Catalogs

No catalogs are available for this product.

See all of AEWIN Technologies Co., Ltd.‘s catalogs

Other AEWIN Technologies Co., Ltd. products

Network Appliance

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
