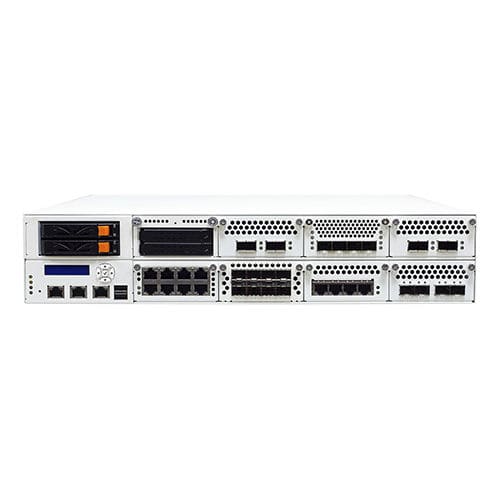

Rack-mount network appliance SCB-1928
2Uredundant power supplyIntel® Xeon

rack-mount network appliance
rack-mount network appliance
rack-mount network appliance
rack-mount network appliance
rack-mount network appliance
Add to favorites
Compare this product


Characteristics

Options
rack-mount, 2U, redundant power supply
Processor
Intel® Xeon, Intel® Skylake Processor
Network
gigabit Ethernet, Ethernet
Number of ports
10 ports
Memory
DDR4 SO-DIMM

Description

High-End 2U Rack-mount Dual Intel® Skylake SP / Cascade Lake SP Xeon® scalable series Processor with Intel® C621 PCH Networking System, support DDR4 up to 768TB(per CPU), 8x PCIe x8 slot for Expansion Lan Modules, 1x PCIe x16 Rear Expansion Slot, 2x USB2.0, 2xGbE, 1x Console, m-SATA, 2x 2.5" Hot-swap HDD/SSD, Redundant PSU The SCB-1928 is a 2U Rack-Mount networking system. Supporting Dual Intel® Purley platform with efficient performance processor Xeon®scalable series and Intel® C621 PCH (codenamed Lewisburg). The new generation platform provides high performance, CPU cores up to 28cores, supports AVX-512 instructions, Ultra Path Interconnect (UPI) up to 10.4 GT/s. The SCB-1928 supports 8 channels DDR4 register ECC DIMM (up to 2933MHz) and maximum memory capacity is up to 768TB(per CPU). With 96 PCIExpress lanes, the SCB-1928 can support up to 8 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The strong IO elements of SCB-1928 include two management Ethernet port (one for management, another for option IPMI function), a consoleport, two USB 2.0 ports, LEDs for PWR / HDD / 2x GPO. In addition, the SCB-1928 also supports two of 2x 2.5" Hot-swap HDD/SSD and onboard m-SATA slot for basic network storage application.
