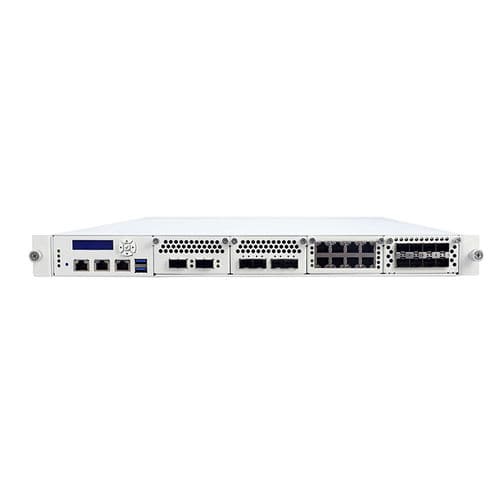

Rack-mount network appliance SCB-1935A

1UAMD EPYC™gigabit Ethernet

The SCB-1935 is a 1U Rack-Mount high-performance networking system. Supporting single AMD® EPYC™ 7002/7003 (Rome/Milan) Processor. Based on of AMD’s new “Zen” CPU core delivers breakthrough computing performance. CPU cores up to 32 cores, supports 64MB cache and total with 128 PCIe lanes. The SCB-1935 supports eight channels DDR4 register ECC DIMM (up to 2667MHz) and maximum memory capacity is up to 512GB. With 32 PCI Express lanes, the SCB-1935A can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The maximum capable Ethernet port is up to 32 GbE ports. SCB-1935B supports up to 2 PCIe x16 slots for single/dual port 100 Gigabit Ethernet Adapter card in front and 1 PCIe x16 slot in rear. The strong IO elements of SCB-1935 include two management Ethernet port (one for management, another for option IPMI function), a console port, two USB 3.0 ports, a Graph LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1935 also supports 1x 3.5” or 2x 2.5” SATA HDDs/SSDs, onboard one m-SATA and two M.2 2280/22110 slots for basic network storage application.
