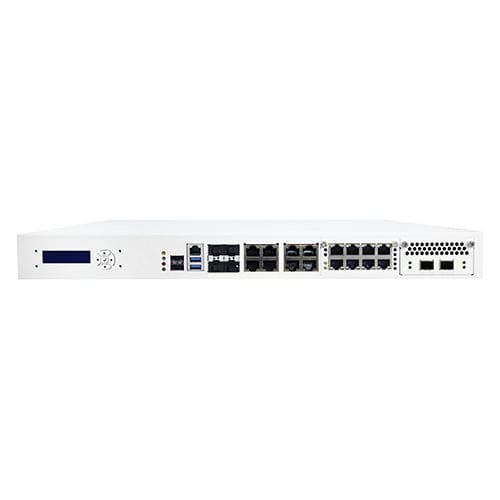

Rack-mount network appliance SCB-1830 series

1UIntel® XeonIntel® Skylake Processor

The SCB-1830 is a 1U rack-mounted hardware platform designed for network service applications. Built with Intel® Embedded IA components with warranty of longevity, the SCB-1830 Support single Intel® 14nm Skylake-D Xeon D-2100 Series processors. The platform supports four DDR4 2400/2666 MHz Registered Buffer RDIMM or LRDIMM sockets with max capacity up to 128 GB. In order to provide the best network performance and best utilization, the powerful storage interfaces include two 2.5" SATA HDD and one mSATA. The SCB-1830 also supports two PCIe x8 expansion slot and affords 2 GbE and max 30 GbE Ethernet ports on the front-panel. The front panel also has one USB 3.0 ports, one RJ-45 console port and LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-1830 is RoHS, FCC and CE compliant.
