The SCB-6911 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® AtomTM /Celeron® Apollo Lake-I low voltage processors. The SCB-6911 supports one DDR3L ECC memory socket.

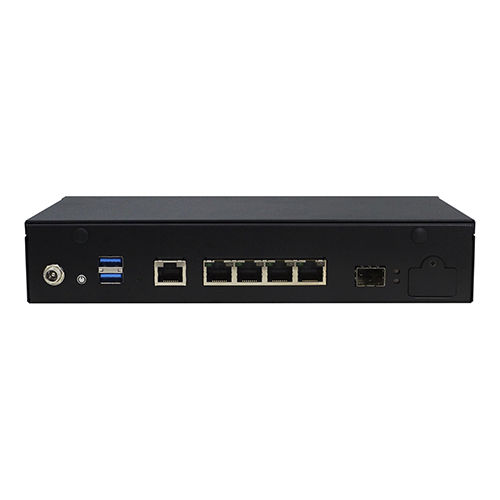

In order to provide the best network performance and best utilization, the storage interfaces include eMMC / SATA 3 HDD/SSD, and it affords four Copper and one Fibber GbE on rear-panel. The rear panel also has two USB 2.0 ports, one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6911 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant.
Compact Fanless Network System
Ideal Noiseless System for Silence environments Use
Intel® ApolloTM Lake Processor, support Atom x5-E3940/E3930
DDR3L 1600MHz ECC memory, max support 8GB
4 x RJ45 & 1x Fibber GbE ports
eMMC 5.0 flash, support up to 64GB (default 32GB)
SATA3 for HDD/SSD
Expansive I/O with 2x USB 2.0, 1x mini-PCIe socket and 1x RJ45 Console port
