Fanless network appliance SCB-6909
compactdesktopIntel® Atom

fanless network appliance
fanless network appliance
fanless network appliance
fanless network appliance
Add to favorites
Compare this product


Characteristics

Options
fanless, compact, desktop
Processor
Intel® Atom

Description

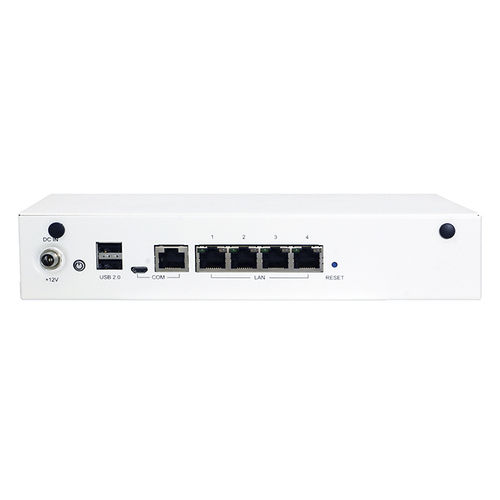

The SCB-6909 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel®® AtomTM /Celeron® Apollo Lake-I low voltage processors.The SCB-6909 supports 2GB on-board DDR3L memory. In order to provide the best network performance and best utilization, the storage interfaces include eMMC, and it affords four Copper GbE on rear-panel. The rear panel also has two USB 2.0 ports, one RJ-45 console port or micro USB console port . The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6909 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant. Compact Fanless Network System Ideal Noiseless System for Silence environments Use Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake) DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports eMMC flash, support up to 64GB (default 8GB) Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port
