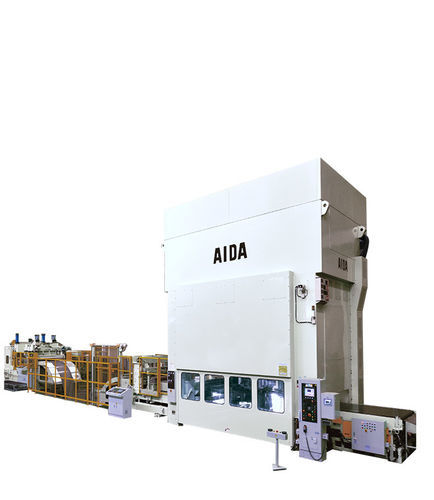

Mechanical press PMX-S4 series

formingstampingfor sheet metal

Overview
The PMX-S4 Series comprises mechanical 4-point straight-side presses designed for progressive-die forming. The tie-rod frame features very low deflection and bearings with minimal clearances to limit breakthrough, reduce noise and extend die life. Slide suspension point centers are positioned close to the tie-rod centers to optimise multi-process forming and resistance to eccentric loads. Built-in dynamic counterbalances reduce vibration and enable stable high-speed production.

Key features

• Forged eccentric shafts mounted on a very low-deflection tie-rod frame with dynamic balancing of slide and upper die
• Built-in dynamic counterbalances for vibration reduction and stable high-speed operation
• Wide spacing between support points to resist off-center loads
• Highly rigid, symmetrical frame suitable for progressive stamping of thick sheet metal
• Slide suspension centers located close to tie-rod centers to support multi-process forming and heavy eccentric loading

Main specifications (excerpt by model)
PMX-S4-2000: Capacity 2000 kN; Stroke length 200 mm; Strokes/min 50–120; Die height approx. 475 mm; Slide area examples: 1550×830 mm / 1850×880 mm; Bolster area examples: 1550×950 mm / 1850×950 mm; Max. upper die weight: ~1000 kg; Side openings examples: 850×375 mm / 900×450 mm.

PMX-S4-3000: Capacity 3000 kN; Stroke length 200 mm; Strokes/min 40–100; Die height approx. 550 mm; Slide area examples: 1850×880 mm / 2150×1000 mm / 2450×1200 mm; Bolster area examples: 1850×1000 mm / 1850×1000 mm / 2150×1000 mm; Max. upper die weight: ~1000–1500 kg depending on variant; Side openings examples: 900×450 mm / 1020×450 mm / 1220×450 mm.

PMX-S4-4000: Capacity 4000 kN; Stroke length 200 mm; Strokes/min 30–80; Die height approx. 650 mm; Slide area examples: 2150×1000 mm / 2450×1200 mm; Bolster area examples: 2150×1250 mm / 2450×1250 mm; Max. upper die weight: ~1500–3000 kg depending on variant; Side openings examples: 1170×450 mm / 1170×550 mm.

PMX-S4-5000: Capacity 5000 kN; Stroke length 300 mm; Strokes/min 30–60; Die height approx. 700 mm; Slide area examples: 2450×1200 mm / 2450×1150 mm; Bolster area examples: 2450×1250 mm / 2450×1400 mm; Max. upper die weight: ~3000 kg; Side opening examples: 1170×550 mm / 1270×650 mm.

PMX-S4-6000: Capacity 6000 kN; Stroke length 250 mm (representative); Strokes/min 30–70; Die height approx. 750 mm; Slide area example: 2450×1250 mm; Bolster area example: 2450×1400 mm; Max. upper die weight: ~3000 kg; Side opening example: 1270×650 mm.

Notes
Series capacities are presented from 2000 kN upward; product documentation on the manufacturer's site indicates the series covers a broad range and additional higher-capacity variants are available (page notes up to 12000 kN, with some references to availability up to 16000 kN).

Technical specifications

• Type: Mechanical 4-point straight-side presses (transversal crankshafts)
• Press capacity range: from 2000 kN (series base) to multi-thousand kN variants (manufacturer indicates higher capacities available)
• Frame: Tie-rod frame with very low deflection and symmetrical front-to-back and left-to-right geometry
• Crankshafts/eccentrics: Forged eccentric shafts; dynamic balancing of slide and upper die
• Counterbalance: Built-in dynamic counterbalances for reduced vibration and stable high-speed operation
• Slide suspension: Suspension point centers positioned close to tie-rod centers for optimal multi-process forming and off-center load resistance
• Typical stroke lengths: approx. 200–300 mm depending on model/variant
• Typical strokes per minute: approx. 30–120 min-1 depending on model/variant
• Die heights (typical): approx. 475–750 mm depending on model
• Slide and bolster areas: multiple L/R × F/B configurations per model (see main specifications above)
• Max. upper die weight: up to several thousand kilograms depending on model/variant
