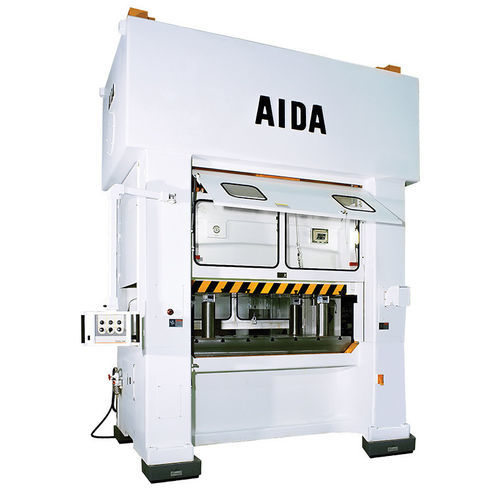

Mechanical press PMX-L2 series

formingstampingfor sheet metal

Description
The PMX-L2 Series comprises high-precision, high-rigidity mechanical 2-point straight-side presses with link-motion, designed for progressive-die stamping. The tie-rod frame with wide-spaced connections and long slide guides combined with forged eccentric shafts and minimized bearing clearances reduces vibration and noise, maintains long-term accuracy and supports heavy progressive dies. The center-drive link-motion limits torsional wind-up of eccentric shafts and increases dwell time in the forming zone to improve material flow and part quality.

Key features

• Mechanical 2-point straight-side construction with link-motion for progressive-die operations
• Highly rigid tie-rod frame with wide spacing and long slide guides for low deflection
• Forged eccentric shafts with center drive to limit torsional wind-up
• Bearings with minimal clearances to reduce noise and preserve accuracy
• Dynamic balancing of slide and upper die to support high-speed operation
• Capacity variants to withstand off-center loads and heavy stamping

Main Specifications (summary)
Models: PMX-L2-2000 (variants 1,2); PMX-L2-3000 (variants 1,2,3); PMX-L2-4000 (variants 1,2); PMX-L2-5000 (variants 1,2); PMX-L2-6000 (variant 1).
Capacity (kN): 2000; 3000; 4000; 5000; 6000.
Stroke length (mm): 200 (2000–4000 models); 300 (PMX-L2-5000); 250 (PMX-L2-6000 variants).
Strokes per minute (min⁻¹) [standard ranges]: 20–40; 15–30; 15–20 (varies by model/variant).
Strokes per minute (min⁻¹) [alternative ranges]: 50–120; 40–100; 30–80; 30–60; 30–70 (model-dependent).
Die height (mm): 475–750 depending on model/variant.
Slide area (L/R x F/B, mm): examples include 1550×830; 1850×880; 2150×1000; 2450×1200; 2450×1250 (varies by model/variant).
Bolster area (L/R x F/B, mm): examples include 1550×950; 1850×950; 2150×1000; 2450×1200; 2450×1400 (varies by model/variant).
Max. upper die weight (kg): examples 1000; 1500; 3000 (depends on model/variant).
Side opening (mm): examples 850×375; 900×450; 1020×450; 1220×450; 1270×650 (varies by model/variant).

Technical specifications

• Press type: Mechanical 2-point straight-side presses with link-motion for progressive dies
• Frame: High-rigidity tie-rod frame, symmetrical front-to-back and left-to-right to maintain dynamic accuracy
• Shafts: Forged eccentric shafts, center drive, dynamic balancing of slide/upper die
• Bearings: Engineered with minimal overall clearances to improve long-term precision and reduce noise
• Productivity: Link-motion increases dwell in forming zone to maximize material flow and part quality, enabling higher operational speeds
• Capacity range: Standard 2000–6000 kN, series available up to 16000 kN
• Die handling: Slide and bolster dimensions sized per model to support large progressive dies; consult model variant data for exact dimensions
