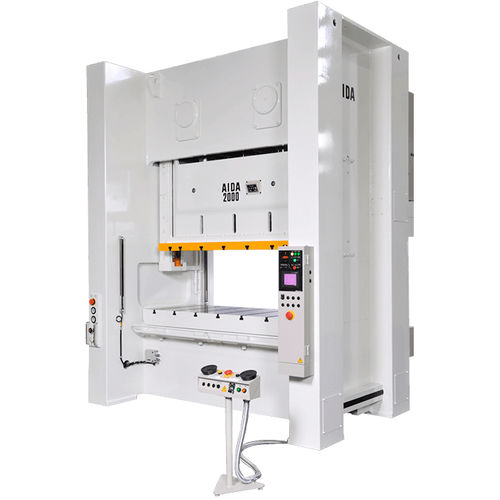

Mechanical press NS2 series

blankingstampingframe

AIDA NS2, two-point unitized frame mechanical presses are available from 110 through 300 tons capacity. The six-point slide guide system provides a long useful life. The wet-type clutch and brake provide higher intermittent rates and long life – important factors for hand-fed and top-stop applications. An AC Variable frequency drive allows for wider speed ranges. The Quill mounted flywheel results in a larger bearing surface. The front to back mounted forged steel crankshaft along with hardened and precision ground gears are well suited for high stress blanking applications. Micro-Inching provides die setting at very low speeds. High-precision and high value-added forming. Monobloc straightside construction eliminates frame deflection. Forced circulation lubrication system. Full-length slide guides.
