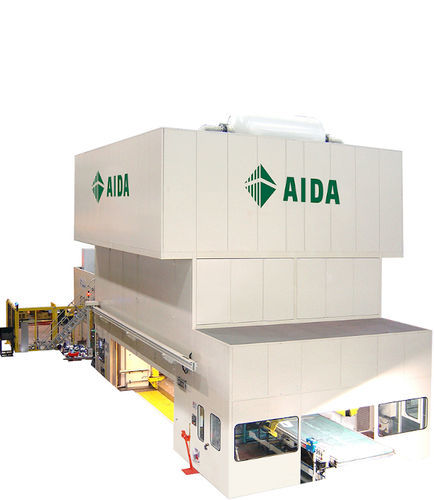

Motorized press DSF-PE2 erieselectricelectronicfor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- electric, motorized, electronic
- Applications
- for sheet metal, for industrial applications
- Structure
- straight-side
- Control
- with integrated controller
- Other characteristics
- servo-driven
- Force
Max.: 12,500 kN
Min.: 4,000 kN
- Opening
Max.: 2,350 mm
(93 in)Min.: 1,700 mm
(67 in)- Rate (strokes/min)
Max.: 89 p/min
Min.: 3 p/min
- Stroke
Max.: 600 mm
(23.622 in)Min.: 350 mm
(13.78 in)- Table width
Max.: 1,800 mm
(71 in)Min.: 1,500 mm
(59 in)- Table length
Max.: 4,600 mm
(181 in)Min.: 2,500 mm
(98 in)
Description
Product
DSF-PE2 Series servo progressive presses are 2-point straightside presses designed for metalforming production with capacities from 4000 kN to 12500 kN. Frames use tie-rod construction and FEM-verified components to limit deflection under load to below 0.1 mm/m. Structural parts are manufactured from quality-controlled steel plates and thermally stress-relieved after welding.
Drive and control
Equipped with AIDA proprietary high-torque, low-speed servo motors optimized for presswork. The AIDA servo package permits precise adjustment of slide motion and stroke length according to part height, and fine control of impact speed on material to improve productivity, die life and reduce maintenance.
Key features
Main Specifications (summary)
Model | DSF-PE2-4000 | DSF-PE2-6300 | DSF-PE2-8000 | DSF-PE2-10000 | DSF-PE2-12500
Capacity (kN) | 4000 | 6300 | 8000 | 10000 | 12500
Slide Stroke (single reduction) (mm) | 350 | 400 | 500 | – | –
Slide Stroke (double reduction) (mm) | – | 450 | 500 | 600 | 600
Slide and bolster length (mm) | 2500-3050-3650 | 3050-3650-4250 | 3650-4000-4600 | 4500 | 4500
Slide and bolster width (mm) | 1500 | 1700 | 1800 | 1800 | 1800
Side window opening (mm) | 1700 | 2200 | 2200 | 2350 | 2350
Shut height (mm) | 600-650-700-750 | 700-750-800-850 | 750-800-850-900 | 750-800-850-900 | 750-800-850-900
Slide adjustment (mm) | 250 | 300 | 300 | 300 | 300
Press speed in pendulum mode (single reduction) (min⁻¹) | 3÷89 | 3÷80 | 3÷70 | – | –
Press speed in pendulum mode (double reduction) (min⁻¹) | – | 3÷55 | 3÷60 | 3÷47 | 3÷47
Technical specifications
DSF-PE2 Series servo progressive presses are 2-point straightside presses designed for metalforming production with capacities from 4000 kN to 12500 kN. Frames use tie-rod construction and FEM-verified components to limit deflection under load to below 0.1 mm/m. Structural parts are manufactured from quality-controlled steel plates and thermally stress-relieved after welding.
Drive and control
Equipped with AIDA proprietary high-torque, low-speed servo motors optimized for presswork. The AIDA servo package permits precise adjustment of slide motion and stroke length according to part height, and fine control of impact speed on material to improve productivity, die life and reduce maintenance.
Key features
- Fully programmable stroke length, velocity and dwell for die-specific optimization
- 500 job recipe storage for repeatable setups
- Teach function to reduce operator entry errors
- Redundant dual encoders for enhanced position safety
- 16-channel PLS safety system
- Integrated tonnage monitor
- Third-party integration with auxiliary equipment screens displayed on press OIT
Main Specifications (summary)
Model | DSF-PE2-4000 | DSF-PE2-6300 | DSF-PE2-8000 | DSF-PE2-10000 | DSF-PE2-12500
Capacity (kN) | 4000 | 6300 | 8000 | 10000 | 12500
Slide Stroke (single reduction) (mm) | 350 | 400 | 500 | – | –
Slide Stroke (double reduction) (mm) | – | 450 | 500 | 600 | 600
Slide and bolster length (mm) | 2500-3050-3650 | 3050-3650-4250 | 3650-4000-4600 | 4500 | 4500
Slide and bolster width (mm) | 1500 | 1700 | 1800 | 1800 | 1800
Side window opening (mm) | 1700 | 2200 | 2200 | 2350 | 2350
Shut height (mm) | 600-650-700-750 | 700-750-800-850 | 750-800-850-900 | 750-800-850-900 | 750-800-850-900
Slide adjustment (mm) | 250 | 300 | 300 | 300 | 300
Press speed in pendulum mode (single reduction) (min⁻¹) | 3÷89 | 3÷80 | 3÷70 | – | –
Press speed in pendulum mode (double reduction) (min⁻¹) | – | 3÷55 | 3÷60 | 3÷47 | 3÷47
Technical specifications
- Series range: 4000 kN to 12500 kN
- Frame: straightside frame, tie-rod construction, FEM-verified components, deflection < 0.1 mm/m
- Materials: quality-controlled steel plates, thermally stress-relieved after welding
- Drive: AIDA proprietary high-torque, low-speed servo motors
- Control: programmable stroke length, velocity and dwell; 500 job recipes; teach function; redundant dual encoders
- Safety & monitoring: 16-channel PLS; integrated tonnage monitor
- Integration: third-party auxiliary equipment displayed on press OIT
- Available models: DSF-PE2-4000 / 6300 / 8000 / 10000 / 12500
