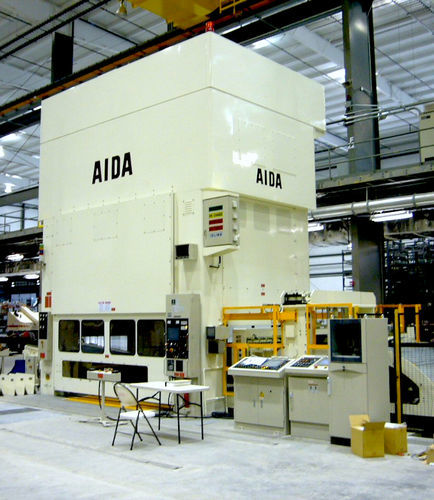

Mechanical press PME-S2 series

formingstampingeccentric

Description
The AIDA PME-S2 Series are 2-point eccentric straight-side presses designed for high-precision forming of automotive structural panels and transmission parts. Key design elements include wide suspension point spacing to improve off-center load capability, minimal overall clearances to reduce breakthrough, 8-point square slide guides to limit lateral and longitudinal movement, and a tie-rod tightened frame to increase rigidity. The large-frame layout and revised manufacturing processes enable reliable forming of high-strength materials. Precision parts are produced in-house to maintain critical tolerances.

Features

• Stamping system enabling wide production diversity and high stability
• Overload protector with advanced metal-seal design for fast response and tooling/press protection
• Minimal overall clearance to reduce the risk of breakthrough
• Adjustable slide system to maintain parallelism and resist off-center loading
• Wide suspension/connection spacing for increased off-center load bearing capacity

Main Specifications
Model | PME-S2-4000 | PME-S2-6300 | PME-S2-8000 | PME-S2-10000
Capacity (kN) | 4000 | 6300 | 8000 | 10000
Slide Stroke (single reduction) (mm) | 350 | 400 | 400 | –
Slide Stroke (double reduction) (mm) | 300-400 | 450 | 450-500 | 400-500-600
Slide and bolster length (mm) | 3050-3650 | 3500-(4250) | 4000 | 4500-5000
Slide and bolster width (mm) | 1500 | 1500-(1700) | 1800 | 1800
Side window opening (mm) | 1700 | 2200 | 2200 | 2360
Shut height (mm) | 600-650-850 | 800-900-1000 | 900-950-1000 | 900-1000
Slide adjustment (mm) | 250 | 300 | 300 | 300
Press speed in pendulum mode (single reduction) (min⁻¹) | 20÷60 | 20÷50 | 20÷50 | –
Press speed in pendulum mode (double reduction) (min⁻¹) | 10÷35 | 10÷30 | 12÷30 | 15÷30

Technical characteristics

• Series: PME-S2 Series (mechanical 2-point eccentric straight-side presses)
• Press capacities: 4000–10000 kN (model dependent)
• Slide stroke (single/double reduction): 350–400 mm / 300–600 mm (varies by model)
• Slide and bolster dimensions: length 3050–5000 mm, width 1500–1800 mm (model dependent)
• Side window opening: 1700–2360 mm (model dependent)
• Shut height options and slide adjustment: multiple settings (shut height examples: 600–1000 mm; slide adjustment 250–300 mm)
• Guide design: 8-point square / 8-surface slide guides to minimize lateral and longitudinal movement
• Frame: tie-rod tightened frame for increased rigidity and precision
• Manufacturing: precision components produced in-house to achieve minimal clearances in critical areas
• Applications: suitable for forming automotive structural panels and transmission parts, including high-strength materials
