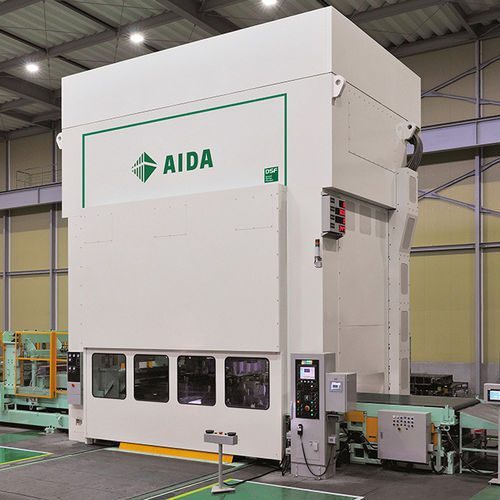

Stamping press DSF-P2 series

for sheet metalframehigh-speed

Overview
The DSF-P2 Series is a family of high-precision, high-rigidity 2-point straight-side servo presses engineered for progressive-die stamping. The tie-rod frame with minimal overall bearing clearances reduces breakthrough and noise, improves long-term accuracy and extends die life. Left/right shaft configuration with wide spacing between connection points resists off-center loads, and a proprietary torque unit prevents reverse-load transmission to the drive gears. Components are machined in-house to achieve total clearance at JIS Special Class or lower. Built-in dynamic counterbalances and dynamic balancing of slide and upper die reduce vibration and enable stable high-speed production. Machining compensates for the minimal deformation occurring on assembly to ensure high-precision assembled components.

Key features

• Forged eccentric shafts on a very low-deflection tie-rod frame with dynamic balancing of slide and upper die
• Built-in dynamic counterbalances reduce vibration and support stable high-speed operation
• Minimizes breakthrough during blanking to extend die life and improve part accuracy
• Highly rigid frame capable of progressive stamping of thick sheet metal
• Symmetric front-to-back and left-to-right design maintains high dynamic accuracy

Main Specifications (selected models)
Model | DSF-P2-4000-245-115 | DSF-P2-6000-305-140
Capacity (kN)* | 4000 | 6000
Stroke length (mm) | 250 | 250
Strokes per minute (min-1) | 1÷80 | 1÷118
Slide adjustment (mm) | 100 | 150
Die height (mm) | 700 | 800
Slide area (L/R x F/B) (mm) | 2450×1150 | 3050×1400
Bolster area (L/R x F/B) (mm) | 2450×1150 | 3050×1400
Side opening (mm) | 1170 | 1250

Note
Available up to 27000 kN on customised technical specification.

Technical specifications

• Press type: 2-point straight-side servo presses for progressive-die applications
• Capacity range: example models shown; available up to 27000 kN on customised specification
• Frame: highly rigid tie-rod frame with symmetric design
• Shafts: forged eccentric shafts; left/right configuration to withstand off-center loads
• Bearings/clearance: minimal overall bearing clearances; total clearance JIS Special Class or lower
• Drive/torque: proprietary torque unit design preventing reverse-load transmission to drive gears
• Dynamic balancing: dynamic balancing of slide and upper die; built-in dynamic counterbalances
• Manufacturing: components machined in-house to replicate assembly deformation and ensure precision
• Application: progressive stamping including thick sheet metal, optimized to reduce breakthrough and extend die life
