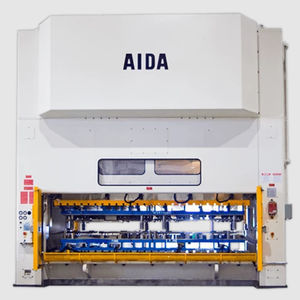

Mechanical press NSX-1100(1)

stampinghigh-volumeframe

Low deflection, rigid unitized steel frame Cast iron slide with detachable face Inboard mounted carbon fiber counterbalances Oversized ball type connection points Recirculating oil lubrication system 65mm stroke length 50 inch L-R bed size Floor mounted design for quick, pit-free installation Allen-Bradley control standard with Link & Wintriss controls optional Locally engineered at AIDA-America in Dayton, OH, the newly designed NSX meets the demands of high-volume stamping operations, with speeds ranging from 120 to 300 strokes per minute. The automotive, appliance, hardware, and consumer goods industries, and all industries who depend upon consistent high-volume production, will benefit from the NSX. A zero clearance, lubrication free, eight-point roller slide guide system and dual counter-rotating eccentric shafts ensure accuracy. AIDA's metal seal type Hydraulic Overload Protection (HOLP), the fastest acting HOLP in the industry, protects press and die integrity. 8-Point Roller Type Slide Guide System Zero-Clearance Guides and Lube Free Die Space (8) points of eccentric pin adjustment allow easy setting to maintain slide to bolster parallelism of less than .001"/ft Ball and Socket Connections Improved Design When Compared to Wrist Pin Connections Eliminate one of the largest maintenance costs of a stamping press: the wrist pin slide connections. Designed to withstand the rigors of heavy stamping. Hydraulic Overload Protection System AIDA's press technology - the industry's fastest protection system. When overload occurs, oil evacuates 360 degrees around the ball seat with minimum oil flow resistance as compared to conventional systems
