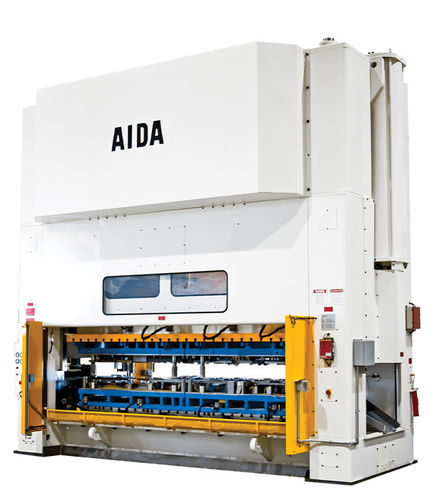

Mechanical press MCX-S2 Series

stampingfor sheet metalstraight-side

Description
MCX-S2 are mechanical straight-side, tie-rod construction presses engineered for high-precision metal stamping. Frame components are FEM-verified and manufactured from quality-controlled steel plates with thermal stress relief after welding to limit deflection under load to below 0,1 mm/m, reducing elongation and improving stamping accuracy.

Drive & Configuration
The MCX-S2 presses feature a high-performance air-friction combination clutch and brake and a quill-mounted flywheel with optional medium or high energy drives. Drive configurations include single or double eccentric gear drive. Multiple stroke lengths, die height options and zero-clearance roller-type slide guides are available to suit progressive and transfer die applications.

Features

• Designed for progressive and transfer die applications and off-center loading.
• High-rigidity straightside frame with tie-rod construction, counter-rotating gears and roller guides.
• Self-contained counter-balance cylinders reduce packing wear, lower maintenance and eliminate air surge tanks.
• 8-point roller guiding of the slide for precise slide motion.
• Equipped with AIDA Hydraulic Overload Protection (HOLP), a high-flow hydraulic overload protection system with very fast response time.

Main Specifications
Model | MCX-S2-4000 | MCX-S2-6300 | MCX-S2-8000
Capacity (kN) | 4000 | 6300 | 8000
Slide Stroke (single reduction) (mm) | 250-300-350 | 350-400 | 400-450-500
Slide Stroke (double reduction) (mm) | – | 400-450 | 400-450-500
Slide and bolster length (mm) | 2500-3050-3650 | 3050-3650-4250 | 3650-4000-4600
Slide and bolster width (mm) | 1500 | 1500 | 1800
Side window opening (mm) | 1100 | 1250 | 1400
Shut height (mm) | 600-650-700-750 | 700-750-800-850 | 750-800-850-900
Slide adjustment (mm) | 250 | 300 | 300
Press speed in pendulum mode (single reduction) (min-1) | 20÷60 | 20÷60 | 20÷50
Press speed in pendulum mode (double reduction) (min-1) | – | 10÷30 | 12÷30

Technical specifications

• Series name: MCX-S2 Series
• Type: Straight-side, tie-rod mechanical presses
• Capacity range: 4000 kN to 8000 kN
• Frame: FEM-verified components, quality-controlled steel plates, thermally stress-relieved after welding
• Drive & clutch: Air-friction combination clutch and brake; quill-mounted flywheel; optional medium or high energy drive
• Drive options: Single or double eccentric gear drive
• Slide guidance: Zero-clearance roller-type guides; 8-point roller guiding
• Counterbalance: Self-contained counter-balance cylinders (reduces packing wear; no air surge tanks required)
• Overload protection: AIDA Hydraulic Overload Protection (HOLP) — high flow rate, rapid response
• Available variations in slide stroke, bolster dimensions, shut heights and speeds per model (see Main Specifications)
