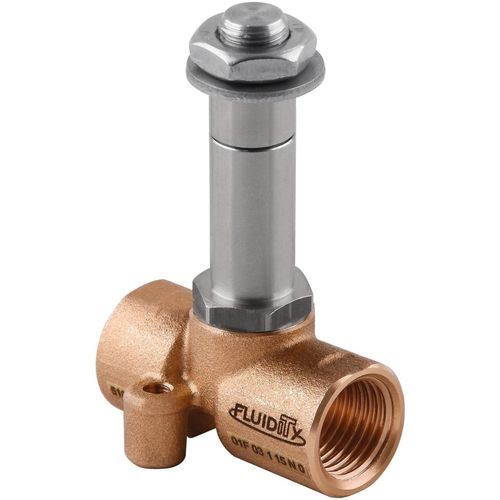

Direct-operated solenoid valve 01F - 2/2 NC2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, for steam, oil
- Body
- threaded, brass
- DN
0.125 in, 0.25 in
- Temperature
Max.: 140 °C
(284 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)
Description
Component Parts and Materials
1 Body: Brass
2 Seals: NBR - EPDM - FKM
3 Welded armature tube: Stainless steel
4 Fixed and mobile core: Stainless steel
5 Springs: Stainless steel
Operator diameter 10 mm
