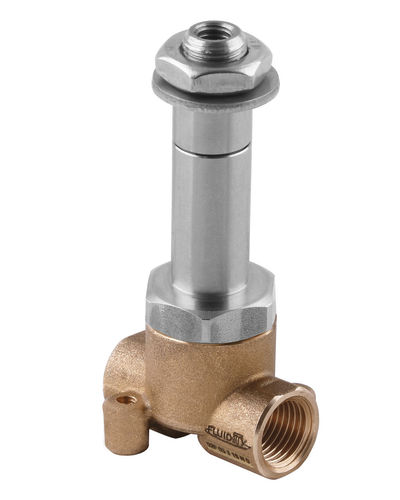

Direct-operated solenoid valve 02F 3/2 NC series
3-wayNCwater

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC
Medium
water, air, for steam, oil
Body
threaded, brass
Temperature

Max.: 140 °C (284 °F)

Min.: -10 °C (14 °F)

Pressure

Max.: 40 bar (580.2 psi)

Min.: 0 bar (0 psi)

DN

13 mm (0.512 in)

Description

Component Parts and Materials 1 Body: Brass 2 Seals: NBR - EPDM - FKM 3 Welded armature tube: Stainless steel 4 Fixed and mobile core: Stainless steel 5 Springs: Stainless steel Maximum allowable pressure 40 bar Room temperature with coil class H - 10 °C + 80 °C Operator diameter 13 mm
