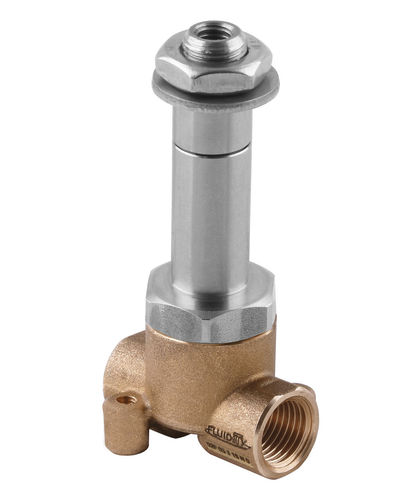

Direct-operated solenoid valve 02F - 3/2 NO3-wayNOfor water
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Function
- NO
- Medium
- for water, air, for steam, oil
- Body
- threaded, brass
- DN
0.25 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 15 bar
(217.6 psi)
Description
Component Parts and Materials
1 Body: Brass
2 Seals: NBR - EPDM - FKM
3 Welded armature tube: Stainless steel
4 Fixed and mobile core: Stainless steel
5 Springs: Stainless steel
Maximum allowable pressure 40 bar
Room temperature with coil class H - 10 °C + 80 °C
Operator diameter 13 mm
