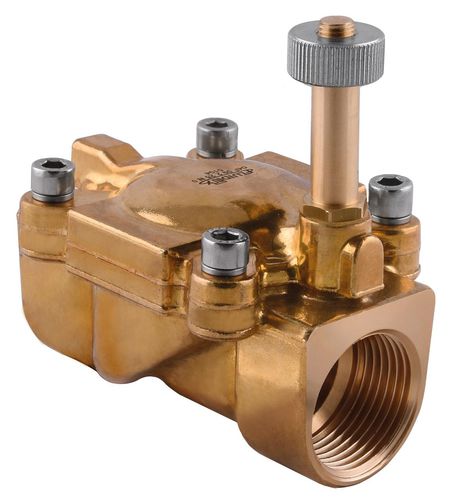

Pilot-operated solenoid valve 04F - 2/2 NO2-wayNOfor water
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NO
- Medium
- for water, air, for steam, oil
- Body
- threaded, brass
- DN
10 mm
(0.394 in)- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0.2 bar
(2.9 psi)Max.: 10 bar
(145 psi)
Description
Component Parts and Materials
1 Body: Brass
2 Seals: NBR - EPDM - FKM
3 Armature tube: Brass
4 Mobile core: Stainless steel
5 Springs: Stainless steel
Room temperature with coil class H - 10 °C + 80 °C
