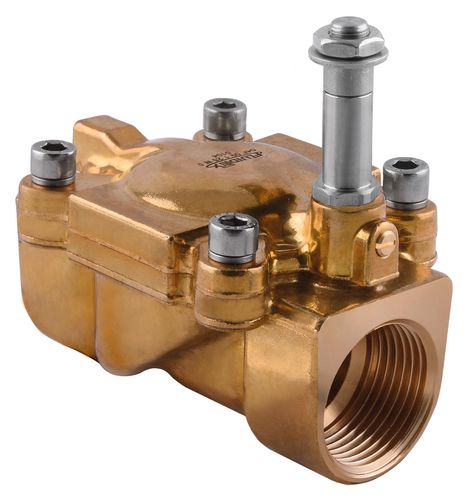

Pilot-operated solenoid valve 04F - 2/2 NC
2-wayNCwater

pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
water, air, for steam, oil
Body
threaded, brass
DN

10 mm, 14 mm, 18 mm, 25 mm
(0.394 in, 0.551 in, 0.709 in, 0.984 in)

Temperature

Min.: -10 °C
(14 °F)

Max.: 140 °C
(284 °F)

Pressure

Min.: 0.2 bar
(2.9 psi)

Max.: 25 bar
(362.6 psi)

Description

Component Parts and Materials 1 Body: Brass 2 Seals: NBR - EPDM - FKM 3 Welded armature tube: Stainless steel 4 Fixed and mobile core: Stainless steel 5 Springs: Stainless steel
