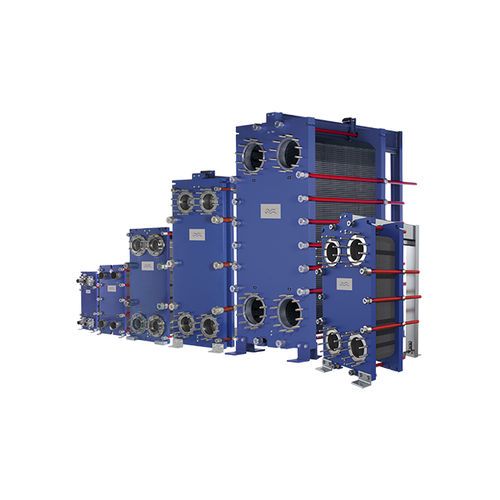

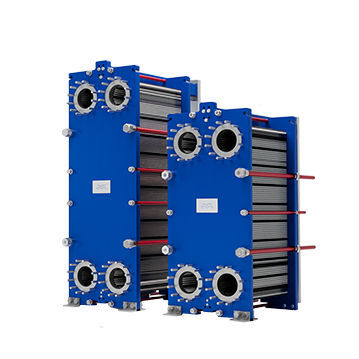

Semi-welded plate heat exchanger T, M series
liquid/liquidstainless steeltitanium

semi-welded plate heat exchanger
semi-welded plate heat exchanger
semi-welded plate heat exchanger
Add to favorites
Compare this product

Characteristics

Type
semi-welded plate
Fluid
liquid/liquid
Material
stainless steel, titanium
Operating pressure

Max.: 5,500,000 Pa (797.71 psi)

Min.: 1,600,000 Pa (232.06 psi)

Temperature

Max.: 180 °C (356 °F)

Min.: -40 °C (-40 °F)

Power

Max.: 1,575,000 W (5,374,120.5 BTU/h)

Min.: 35,000 W (119,424.9 BTU/h)

Description

Semi-welded plate heat exchangers are suitable for refrigeration, chemical processes and various kinds of industrial utility duties. The unique Alfa Laval RefTight™ sealing system guarantees a long lifetime sealing between the welded channels because the laser weld is on the outside of the ring gasket groove. The smooth surface ensures a tight uniform seal over the entire gasket ring. Highly efficient and flexible Space-saving compact unit Low operating cost possible owing to superior energy efficiency and prolonged service intervals Safe and reliable sealing with no risk of cross-contamination Pressure and temperature fatigue resistant You can order the Alfa Laval Industrial semi-welded line for various temperature programs, pressure drop limitations, media and operating pressures. The various sizes in the product line cover a full range of heat transfer capacities and flows. All are carefully designed and selected to achieve optimal performance.
