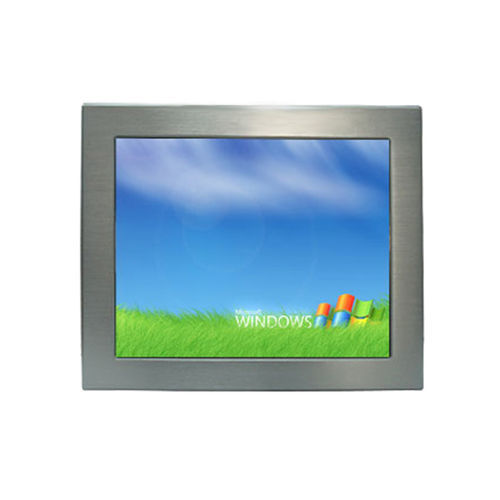

Resistive touch screen panel PC AMG-19PPC02T5

LCDLED backlight19"

Product Overview
The 19 inch industrial panel computer AMG-19PPC02T5 from Amongo is designed with below benefits:

• Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
• Latest industrial-grade components like high performance processor, hard drives, power supplies for stable function for 24/7 long time working;
• Flexible touchscreen options like PCAP, Resistive, IR etc.;
• Rugged shell design with aluminum bezel for front IP65 waterproof etc.;
• Standard mounting like panel mount or embedded mount;
• Rigorous quality control to ensure fully function after delivery

Specifications (table)
Model Name: AMG-19PPC02T5
CPU: Intel ® Bay Trail J1900 Mini-ITX(2GHz)
Memory: DDR3L 1333/1600MHz 2GB
HDD: 60GB (optional)
COM ports: 1 x COM port
PS/2 port: NA
VGA port: 1 x VGA port
HDMI port: 1 x HDMI port
USB ports: Default 2 x USB 2.0
Ethernet ports: 1x10/100/1000BASE-T Gigabit Ethernet
Audio: Line-out,Mic-in
Display Size(Diagonal): 19"
Active Display Area(mm): 376.32(H)x301.06(V)
Max Resolution: 1280x1024
Support Color: 16.7M
Brightness(CD/㎡): 250
Contrast Ratio: 1000:1
Pixel Pitch(mm): 0.264(H)x0.264(V)
Viewing Angle: 170(H);160(V)
Response Time(Typ.Tr+Tf): 5ms
Backlight: LED
Type: Resistive Touchscreen
Use connector: 4pin USB2.0
Input Voltage: AC 90-264V 4A 47～63Hz
Output Rating: 60W(max)
Ouput Voltage: +12V @5A;
Dimension(VxHxT): 474.6x399.6x90.36
Operating Temperature: 0～50℃
Storage Temperature: -20～60℃
Relative Humidity: 5[%RH]～90[%RH]

Caractéristiques / spécifications techniques

• Model Name: AMG-19PPC02T5
• CPU: Intel ® Bay Trail J1900 Mini-ITX (2GHz)
• Memory: DDR3L 1333/1600MHz 2GB
• Storage: 60GB (optional)
• Display Size: 19" (Active area 376.32 x 301.06 mm)
• Max Resolution: 1280 x 1024
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 170° (H); 160° (V)
• Pixel Pitch: 0.264 x 0.264 mm
• Response Time: 5 ms
• Backlight: LED
• Touchscreen: Resistive (use connector: 4pin USB2.0)
• I/O: 1 x COM, 1 x VGA, 1 x HDMI, 2 x USB 2.0 (default), 1 x Gigabit Ethernet, Line-out, Mic-in
• Power: Input AC 90-264V 4A 47-63Hz; Output 60W(max); +12V @5A
• Dimensions (VxHxT): 474.6 x 399.6 x 90.36 mm
• Operating Temperature: 0 to 50 °C
• Storage Temperature: -20 to 60 °C
• Relative Humidity: 5% to 90% RH
