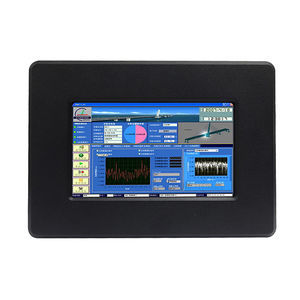

Resistive touch screen panel PC AMG-06PPC01T3

LED backlight6.5"Intel® Celeron N2930

Product overview
AMG-06PPC01T3 is a 6.5-inch compact embedded industrial tablet PC, equipped with Intel® Bay Trail-M N2930 low-power quad-core processor. Adopting a stainless steel panel and slim embedded structure, it is standard-configured with a 4-wire resistive touch screen and 600nits high-brightness industrial display. Featuring dual Gigabit Ethernet ports, multiple serial ports and abundant USB interfaces, it supports stable operation within an ultra-wide temperature range of -30℃ to 80℃. Tailored for narrow control cabinets, vehicle-mounted equipment, outdoor measurement and control devices, and small production line stations, it serves as a mini human-computer interaction terminal.

Key features

• 6.5-inch compact body, ideal embedded all-in-one PC for narrow control cabinets and vehicle-mounted devices
• 600nits high-brightness screen for clear visibility under strong sunlight
• 4-wire resistive touch, operable with gloves, greasy and humid environments
• 9-24V wide voltage power supply, compatible with industrial and vehicle power systems
• Ultra-wide temperature range of -30℃~80℃, ensuring stable operation in extreme cold and high-temperature environments

Mounting & installation

• Supports embedded mounting

Typical applications

• Control panels for small automated production lines, mini PLC consoles
• Monitoring terminals for construction machinery and special vehicles
• Outdoor environmental water quality & gas monitoring equipment
• HMI for building automation and compact intelligent control cabinets
• Logistics sorting terminals, industrial displays for laboratory testing instruments

Features of 6.5 Inch Panel Mount Industrial Panel PC

• Branded LCD panels with perfect image quality and wide viewing angles
• High performance Intel processor, fast access hard drives, long-life power supplies
• Various touchscreen technologies, like PCAP, Resistive, IR etc.
• Rugged structure design with front IP65 aluminum bezel for waterproof
• Easy installation for panel mount or embedded mount
• Suitable used as operator panel for machine control
• Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.

Specifications
Model Name : AMG-06PPC01T3
CPU : Intel® Bay Trail-M N2930 SOC Processor 1.83G
Memory : DDR3L 1333MHz 4GB
HDD : M-sata 32G
DVI port : 1xDVI port
COM ports : 4xCOM (optional)
USB ports : 3xUSB2.0 (1xUSB 3.0)
Ethernet ports : 2xRTL8111G PCI-E Gigabit LAN
Audio : 1xLine-out port
Display Size : 6.5"
Active Display Area(mm) : 132.48(H)x99.36(V)
Max Resolution : 640x480
Support Color : 16.2M/262K colors
Luminance(CD/M2) : 600
Contrast Ratio : 600:1
Pixel Pitch (mm) : 0.207(H)x0.207(V)
Display Mode : Normally White
Viewing Angle : 160(H);140(V)
Backlight : LED
Type : Resistive Touchscreen
Use connector : 4pin USB2.0
Input Voltage : DC 9-24V IN
Output Rating : 20W(max)
Dimension(VxHxT) : 208x158x53
Operating Temperature : -30～80℃
Storage Temperature : -30～80℃
Relative Humidity : 5[%RH]～90[%RH]

caractéristiques / spécifications techniques

• Model Name: AMG-06PPC01T3
• CPU: Intel® Bay Trail-M N2930 SOC Processor 1.83G
• Memory: DDR3L 1333MHz 4GB
• Storage: M-sata 32G
• Display: 6.5", Active area 132.48(H)x99.36(V) mm, Max resolution 640x480, 600 cd/m2, 600:1 contrast
• Touch: 4-wire resistive touchscreen (connector: 4pin USB2.0)
• Interfaces: 1xDVI, 4xCOM (optional), 3xUSB2.0 (including 1xUSB3.0), 2xGigabit LAN, 1xLine-out
• Power: DC 9-24V IN, Output rating 20W (max)
• Dimensions: 208 x 158 x 53 mm
• Operating / Storage Temperature: -30℃ to 80℃
• Relative Humidity: 5%RH to 90%RH
• Backlight: LED; Viewing angle 160°(H)/140°(V)
