Multitouch screen panel PC AMG-32PPC01T3

LCDPCAP touchscreenprojected capacitive touchscreen

Description

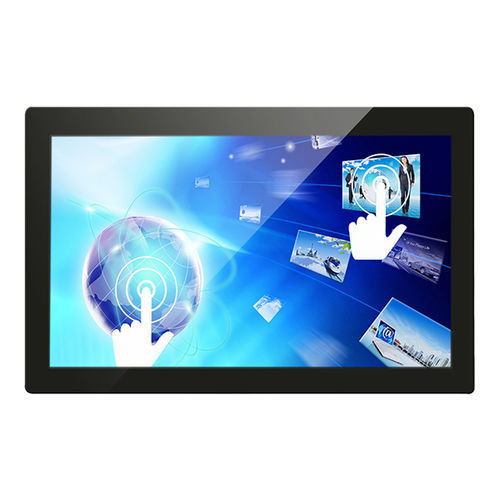

The 32-inch VESA wall-mount industrial panel PC AMG-32PPC01T3 is a Full HD (1920x1080) industrial display with PCAP multi-touch and a VESA-compatible wall mounting, designed for embedded industrial computing and harsh environments.

Key features

• Industrial-grade 32-inch LCD panel with long lifespan and low power consumption
• Intel Haswell/Broadwell series SoC processor and high-end components for continuous operation
• PCAP multi-touch touchscreen, true flat surface (10 points)
• Robust metal, aluminum or stainless steel enclosure for front IP rating, dust and vandal protection
• Certified for reliability, anti-shock and anti-vibration by independent laboratories
• Customizable configuration options for embedded industrial applications

Technical specifications

• Model Name: AMG-32PPC01T3
• CPU: Intel Haswell/Broadwell series SoC Processor
• RAM: 4GB (max 8GB optional)
• mSATA: 16GB (max 128GB optional)
• VGA ports: 1x VGA
• HDMI ports: 1x HDMI
• USB ports: Default 2x USB 2.0 (2x USB 3.0 optional)
• Ethernet: 1x 10/100/1000BASE-T Gigabit Ethernet
• Audio: Mic-in, Line-out
• Display: 32-inch Full HD (1920x1080)
• Active area (mm): 698.4 (H) x 392.85 (V)
• Pixel pitch (mm): 0.12125 (H) x 0.12125 (V)
• Brightness: 300 nits
• Contrast ratio: 1200:1
• Viewing angles: 178° (H) / 178° (V)
• Response time: 8 ms
• Touch controller: USB
• Signal connectors: VGA / HDMI / USB / Audio / LAN
• Power: AC 100~240V
• Dimensions (V x H x T): 779 x 489 x 60 mm
• Operating temperature: 0 ~ 50°C (non-condensing)
• Storage temperature: -20 ~ 60°C (non-condensing)
• Relative humidity: 5 ~ 90% RH
