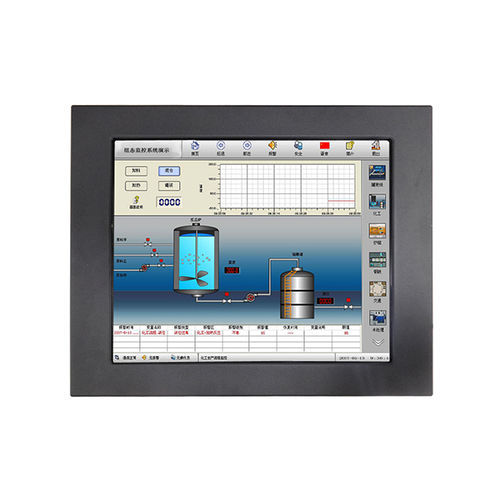

Resistive touch screen panel PC AMG-17PPC02T1PCAP touchscreenLED backlight17"
Add to favorites
Compare this product
Characteristics
- Screen type
- LED backlight, PCAP touchscreen, resistive touch screen
- Display size
- 17"
- Processor
- Intel® Celeron J1900
- Resolution
- 1280 x 1024
- Memory
- DDR3L DRAM
- Construction
- in metal housing, metal chassis
- Mounting
- embedded
- Applications
- industrial, for IoT applications, for the food industry, for clean rooms, railway
- Protection level
- IP65, waterproof front panel
- Other characteristics
- HMI, Ethernet, RJ45, USB 2.0
- Memory size
Max.: 8 GB
Min.: 2 GB
Description
Product overview
The 17-inch panel-mount industrial Panel PC AMG-17PPC02T1 is engineered for continuous industrial use and human-machine interface applications.
Technical specifications
Applications and mounting
The 17-inch panel-mount industrial Panel PC AMG-17PPC02T1 is engineered for continuous industrial use and human-machine interface applications.
- 17-inch branded LCD with 1280x1024 resolution, very high luminance (1500 cd/m²) and wide viewing angles; LED backlight
- Industrial-grade computing with Intel Bay Trail J1900 Quad Core and configurable DDR3L memory (2GB default, up to 8GB)
- Flexible touchscreen options: IR, PCAP, resistive (configurable)
- Rugged metal enclosure with front IP65 dust protection; panel-mount or embedded installation
- Standard industrial I/O including HDMI, VGA, USB 3.0/2.0, Gigabit LAN and audio
- Designed and tested for long 24/7 operation
Technical specifications
- Model: AMG-17PPC02T1
- CPU: Intel Bay Trail J1900 Quad Core 2.0 GHz
- Memory: DDR3L 2GB (expandable to 8GB)
- Storage: SSD 16GB / 32GB (optional)
- Display: 17-inch, active area 337.920 x 270.336 mm, max resolution 1280 x 1024
- Luminance: 1500 cd/m²; Contrast ratio: 1000:1; Pixel pitch: 0.264 x 0.264 mm
- Viewing angles: 170° (H) / 160° (V); Backlight: LED
- Touch: IR touchscreen (other options: PCAP, resistive)
- I/O: 1×HDMI, 1×VGA, 3×USB2.0, 1×USB3.0, 1×Gigabit LAN, Line-out, Mic-in
- Power: Input 100–240V AC 1.5A 50/60Hz; Output rating 150W (max)
- Dimensions (V×H×T): 384.6 × 316.6 × 86.5 mm
- Operating temperature: 0–50°C; Storage: -20–60°C; Relative humidity: 5%–90% RH
Applications and mounting
- Typical uses: industrial HMI, machine control, process monitoring, kiosks and control cabinets
- Mounting: panel-mount or embedded mount; front bezel retains IP65 when installed
- Configuration options: touchscreen type, memory and SSD capacity, additional I/O on request
- Quality: factory testing and industrial components for continuous operation and reliability
