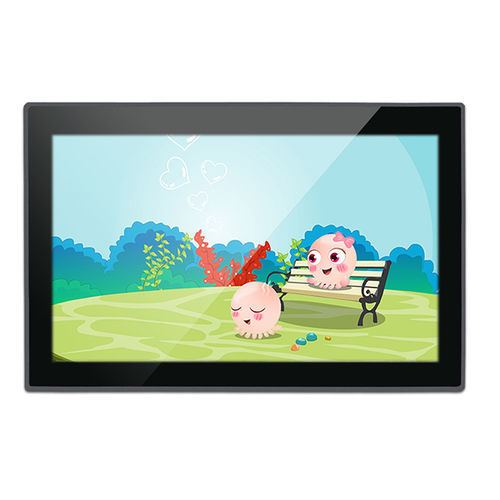

Multitouch screen panel PC AMG-10PPC01T3

PCAP touchscreen10.1"Intel® Celeron N2930

Product overview
The 10.1-inch zero-bezel industrial panel PC AMG-10PPC01T3 from Amongo integrates a high-resolution TFT LCD and a 10-point PCAP touch interface for industrial HMI applications.

• 10.1" zero-bezel PCAP multi-touch (10 points), optional tempered glass;
• High-resolution 1280×800 TFT LCD with 350 cd/m² brightness and wide 170° viewing angles;
• Fan-less design with Intel® Celeron® N2930 for low power consumption;
• Edge-to-edge true-flat front with IP65 protection for easy cleaning and maintenance;
• Robust enclosure and anti-vibration/anti-shock construction for harsh environments;
• Multiple mounting options: VESA, panel mount;
• Supports Windows, Android and Linux operating systems;
• Tested for reliability and long-term operation;
• Compliant with CE, RoHS and ISO standards.

Technical specifications

• Model: AMG-10PPC01T3
• Manufacturer: Amongo
• CPU: Intel® Celeron® N2930 @ 1.83GHz
• RAM: 4GB (expandable to 8GB)
• Storage: 32GB SSD
• Power supply: DC 12V (1× power input)
• USB ports: base configuration 1× USB (options: 2× USB2.0, 3× USB3.0)
• WiFi: supported/optional
• Screen size: 10.1" (active area 216.96 × 135.6 mm)
• Pixel pitch: 0.1695 × 0.1695 mm
• Display resolution: 1280 × 800
• Brightness: 350 cd/m²
• Contrast ratio: 800:1
• Viewing angles: 170° H / 170° V
• Response time: 25 ms (Tr+Tf)
• Signal connector: VGA / USB
• Power consumption: DC 12V
• Touch controller: USB
• Touch screen: PCAP touch (10 points)
• Dimensions (V × H × T): 251.4 × 174.4 × 44 mm
• Operating temperature: -20°C to 70°C (non-condensing)
• Storage temperature: -30°C to 80°C (non-condensing)
• Relative humidity: 5–90% RH
