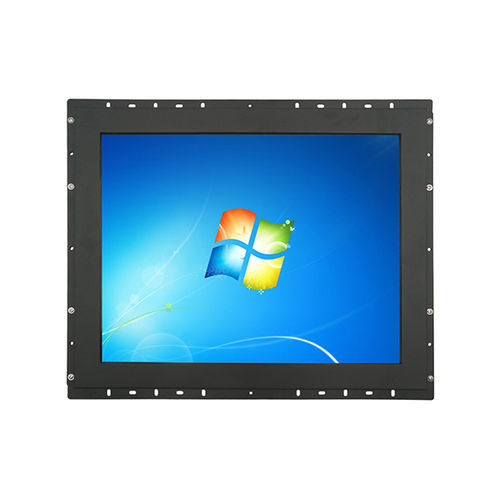

Resistive touch screen panel PC AMG-17PPC02T3

17"Intel® Celeron J19001280 x 1024

Product overview

• 17" VESA wall-mount industrial panel PC with industrial-grade LCD offering 1280×1024 resolution and wide viewing angles;
• Intel® Bay Trail J1900 Quad Core 2.0GHz CPU and industrial-grade components designed for reliable 24/7 operation;
• Robust mechanical design and VESA-compatible wall mounting for harsh environments;
• IP-rated enclosure to resist water and dust ingress; shock and vibration resistant;
• IR touchscreen with optional tempered glass; customizable I/O and storage options.

Specifications (key)
Model Name : AMG-17PPC02T3
CPU : Intel® Bay Trail J1900 Quad Core 2.0GHz
RAM : DDR3L 1333/1600MHz 2GB (expandable)
SSD : 16GB (32/64GB optional)
Display : 17" 1280×1024, 350 nits, 1000:1, 16.7M colors
Active Area (mm) : 337.920(H) x 270.336(V)
Pixel Pitch (mm) : 0.264(H) x 0.264(V)
Touch Screen : IR Touchscreen (tempered glass optional)
I/O : 1 x VGA, 1 x RS232, 1 x COM, 3 x USB2.0, 1 x USB3.0, 1 x Gigabit LAN
Dimension (VxHxT) mm : 425 x 364 x 60
Operating Temperature : -30~85℃ (non-condensing)
Storage Temperature : -30~85℃ (non-condensing)
Relative Humidity : 5~90% RH

Features / technical specifications

• Model: AMG-17PPC02T3
• Processor: Intel® Bay Trail J1900 Quad Core 2.0GHz
• Memory: DDR3L 2GB (1333/1600MHz); expandable
• Storage: 16GB SSD (options 32GB / 64GB)
• Display: 17" TFT, 1280×1024, 350 nits, 1000:1 contrast, 16.7M colors
• Touch: IR touchscreen; tempered glass optional
• Connectivity: 1 x VGA, 1 x RS232, 1 x COM, 3 x USB2.0, 1 x USB3.0, 1 x 10/100/1000Base-T Gigabit Ethernet
• Mechanical: VESA wall-mount compatible, dimensions 425 x 364 x 60 mm
• Environmental: Operating -30~85℃ (non-condensing); Storage -30~85℃; Relative humidity 5~90% RH
• Customization: Options for RAM, SSD, protective glass and additional I/O
