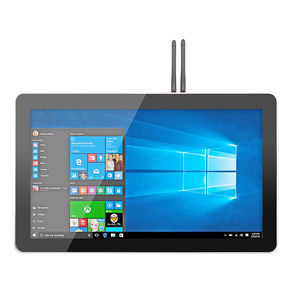

Resistive touch screen panel PC AMG-15PPC04T1

PCAP touchscreen15.6"Intel® Atom

Overview
The AMG-15PPC04T1 is a 15.6-inch panel-mount industrial panel PC engineered for continuous operation in harsh environments. It supports panel or embedded mounting and ships with a resistive touchscreen by default (PCAP/IR optional).

Key features

• 15.6-inch industrial-grade LCD, 1366 x 768, 300 cd/m², 500:1 contrast, wide viewing angles
• CPU: Intel® Cedar Trail-M 2800 (1.86GHz); Memory: 2GB DDR3 SO-DIMM; Storage: 500GB 5400RPM 2.5-inch SATA
• Touch options: Resistive (default); optional PCAP or IR; touch connector: 4-pin USB2.0
• Rugged IP-rated housing with anti-shock and anti-vibration design suitable for water/dust-prone environments
• I/O: 4 x COM, 3 x USB 2.0, 1 x Gigabit Ethernet (10/100/1000BASE-T), Line-out, Mic-in
• Power: 35W (max); Input voltage: +12V @ 5A
• Operating range: 0–60°C; Storage: -20–80°C; Relative humidity: 5%–90% RH

Technical specifications

• Model Name: AMG-15PPC04T1
• Display active area: 344.232 x 193.536 mm; Max resolution: 1366 x 768; Colors: 16.7M; Viewing angle: 170° (H)/160° (V); Response time: 8 ms; Backlight: LED
• CPU: Intel® Cedar Trail-M Processor 2800 (1.86GHz)
• Memory: 2GB DDR3 SO-DIMM
• Storage: 500GB 5400RPM 2.5-inch SATA
• I/O: 4 COM (default), 3 USB 2.0 (default), 1 x Gigabit Ethernet, Line-out, Mic-in
• Dimensions (V x H x T): 422.4 x 271.7 x 60 mm
• Power & environment: Output rating 35W (max); Input +12V @5A; Operating 0–60°C; Storage -20–80°C; Relative humidity 5%–90% RH
