Multitouch screen panel PC AMG-15PPC42T3

PCAP touchscreen15.6"dual-core

Description

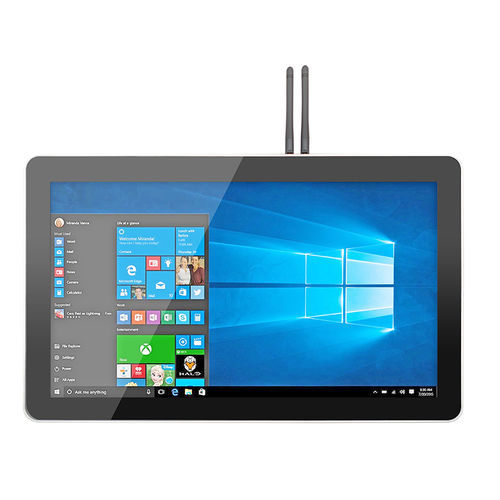

AMG-15PPC42T3 is a 15.6" fully bonded industrial touch Panel PC featuring an Intel Celeron J6412 quad-core processor, fanless design and IP65 front protection. It supports Windows 10/11 and Linux, provides multiple COM, LAN and USB interfaces, and accepts a standard 10-point capacitive touch. Designed for continuous 24/7 industrial operation.

Key features

• Intel J6412 low-power quad-core CPU; standard 8 GB RAM and 128 GB SSD
• Multiple expansion interfaces for industrial peripherals (USB, RS232/RS485, HDMI, VGA, Gigabit LAN)
• IP65 front protection, IK08 impact resistance and Mohs 7H surface hardness
• Supports Windows and Linux; optional WiFi/Bluetooth/GPS modules
• Wide operating conditions and 24/7 stability; fanless thermal design
• Brightness options: 250 nits standard, configurable 100–1000 nits; full lamination and AG anti-glare optional

Mounting & installation

• VESA mounting
• Rear-panel mounting
• Console/machine-panel mounting

Typical applications

• Industrial workstation terminals and PLC control panels
• IoT data acquisition, smart warehouse terminals and gateways
• HMI for smart manufacturing and production monitoring
• Security, environmental monitoring and diagnostic terminals
• Commercial embedded control and intelligent devices

Technical specifications

• Model: AMG-15PPC42T3
• CPU: Intel J6412, quad-core, up to 2.6 GHz
• Memory: 8 GB DDR
• Storage: 128 GB SSD
• USB: 2× USB3.0, 4× USB2.0
• Serial: 2× RS232/RS485
• Video out: HDMI, VGA
• OS: Windows 11, Windows 10, Linux
• LAN: 1× 10/100/1000Base-T Gigabit Ethernet
• Screen size: 15.6" (Active area: 344.16 × 193.59 mm)
• Pixel pitch: 0.17925 × 0.17925 mm
• Resolution: 1920 × 1080
• Brightness: 250 nits (standard); 100–1000 nits optional
• Contrast ratio: 800:1
• Viewing angles: 178° (H); 170° (V)
• Response time: 25 ms
• Touch: PCAP 10-point (optional)
• WiFi: optional
• Impact resistance: IK08; Surface hardness: Mohs 7H
• Dimensions (V×H×T): 390.8 × 241.1 × 43 mm
• Operating temperature: 0 to 50 °C (non-condensing)
• Storage temperature: -20 to 60 °C (non-condensing)
• Relative humidity: 5–90 %RH
