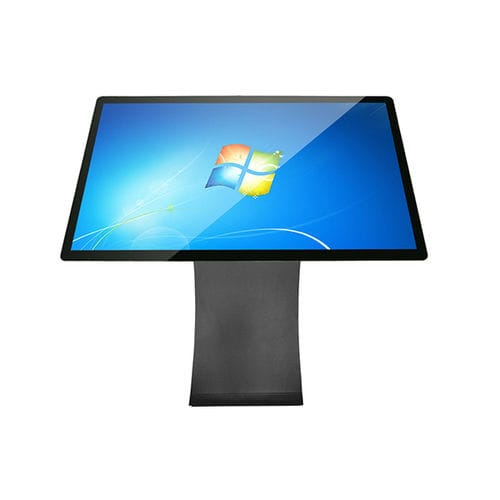

Multitouch screen panel PC AMG-43PPC01T1

TFT LCDPCAP touchscreenLED backlight

Product Overview
The 43-inch industrial panel PC AMG-43PPC01T1 offered by Amongo is designed for continuous industrial use and touch-interactive applications.

• Bezel-free PCAP touchscreen with 10-point multi-touch for fast, accurate input;
• 43-inch FHD (1920x1080) TFT LCD with LED backlight, 300 cd/m² brightness and 178° viewing angles;
• Intel i5-3337U processor with fan-less cooling for reduced maintenance and dust ingress;
• Industrial-grade components to support 24/7 operation;
• Front protection IP65 (dustproof) and optional tempered glass for vandal resistance;
• Multiple mounting options: VESA, embedded, K/L-type floor stands, wall-mounted;
• Standard interfaces: 2x VGA, 2x HDMI, 4x USB 2.0, 1x Gigabit Ethernet, Mic-in, Line-out; 802.11n WiFi available;
• Supports Windows, Android, Linux; certified to UL (and listed CE/RoHS/ISO on product page).

Specifications
Model: AMG-43PPC01T1
CPU: Intel i5-3337U @ 1.80GHz
Memory: DDRIII 8GB
Storage: 128GB SSD
Display: 43-inch, 1920x1080, 16.7M colors, 300 cd/m², 1200:1 contrast
Active area: 943.78 x 532.02 mm
Touch: PCAP 10-point
Video ports: 2x VGA, 2x HDMI
USB: 4x USB 2.0
Ethernet: 1x 10/100/1000BASE-T Gigabit
Audio: Mic-in, Line-out
WiFi: 802.11n
Front protection: IP65
Operating temp: 0–50°C (non-condensing)
Storage temp: -10–60°C (non-condensing)
Relative humidity: 5–90% RH


Features / Technical specifications

• Industrial design for continuous operation and harsh environments (anti-vibration, anti-shock casing)
• Fan-less cooling to minimize dust intake and maintenance
• Bezel-free PCAP for seamless touch integration in kiosks and HMI systems
• Optional tempered glass for anti-vandal installations
• Flexible mounting and floor-stand options for fixed or mobile deployments
• Wide OS compatibility for integration into existing control systems
• Certifications: UL (additional CE, RoHS, ISO 9001 & 14001 listed on product page)
