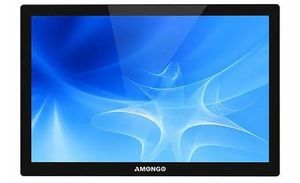

LCD monitor AMG-18IPTL01T1
multitouch screenLED backlightwith PCT touch screen

LCD monitor - AMG-18IPTL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-18IPTL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-18IPTL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 2
LCD monitor - AMG-18IPTL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 3
LCD monitor - AMG-18IPTL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, digital, LED backlight
Applications
versatile, industrial, mobile, for industrial machines, for digital signage, for displays, for HMI interface, for vehicles, POS, for cleaning, for IoT applications, for indoor use, multifunction, for heavy-duty applications, for hygienic applications
Display size
18.5"
Resolution
1366 x 768
Mounting
VESA mounting, embedded
Other characteristics
high-brightness, wide viewing angle, sunlight-readable, IP65, waterproof, dust-proof, vandal-proof
Width

308 mm
(12.126 in)

Height

480 mm
(18.8976 in)

Thickness

57.8 mm
(2.276 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product description
The AMG-18IPTL01T1 is an 18.5" industrial sunlight-readable LCD display engineered for outdoor and harsh-environment installations. It provides optional PCAP 10-point multi-touch, ambient light sensing, an IP65 flat-face enclosure and flexible mounting (embedded or VESA). With LED backlight up to 800 nits and wide viewing angles, the unit is suitable for continuous 24/7 operation after reliability testing.

Key features
  • 18.5" sunlight-readable LCD, 1366x768 resolution
  • PCAP 10-point multi-touch (optional) with USB touch controller
  • Flat-face IP65 enclosure: waterproof, dust-proof and vandal-resistant
  • High-brightness LED backlight: 800 nits
  • Wide viewing angles: 170° (H) / 160° (V)
  • Flexible mounting options: embedded or VESA
  • Wide input voltage range: DC 9V–36V


Typical applications
  • Industrial automation and HMI panels
  • Outdoor kiosks and digital signage
  • Vehicle-mounted and mobile equipment displays
  • Intelligent warehousing, security and control consoles
  • Self-service terminals and ticketing machines


Specification
Model Name: AMG-18IPTL01T1
Screen Size: 18.5"
Active Display Area (mm): 409.8(H)x230.4(V)
Pixel Pitch (mm): 0.3(H)x0.3(V)
Display Mode: Normally White
Display Resolution (pixel): 1366x768
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 800 nits
Backlight: LED
Viewing Angles (CR=10): 170°(H);160°(V)
Response Time (Typ. Tr+Tf): 5ms
Touch Screen: PCAP Touch (10 points) (optional)
Signal Connector: VGA / DVI / USB
Touch Controller: USB
Power Input: DC 9V-36V
Operating Temperature: 0~50℃ (non-condensation)
Storage Temperature: -20~60℃ (non-condensation)
Relative Humidity: 5~90% RH

Technical specifications
  • Model: AMG-18IPTL01T1
  • Screen Size: 18.5"
  • Resolution: 1366x768
  • Brightness: 800 nits
  • Touch: PCAP 10-point (USB)
  • Ingress Protection: Front IP65
  • Power: DC 9V–36V
  • Dimensions (V x H x T): 480 x 308 x 57.8 mm
  • Operating Temp: 0~50℃
  • Storage Temp: -20~60℃
