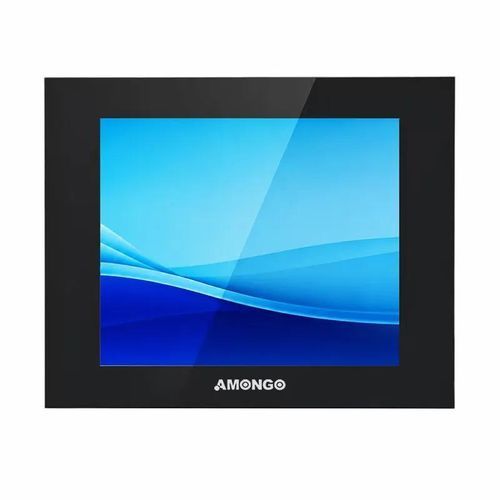

LCD monitor AMG-17OPGD01T5

LEDPCAP touchscreenindustrial

Product overview
AMG-17OPGD01T5 is a 17-inch high-brightness industrial display designed for outdoor and harsh-environment applications. Touchscreen (PCAP, 10-point) and ambient light sensor are available as optional configurations. The unit supports wide operating temperatures and offers IP65 protection for dust and water resistance.

Key features

• High brightness (1200 nits), sunlight readable
• Optional ambient light sensor for power saving and adaptive readability
• IP65-rated front panel for dust/water and vandal resistance
• Stable operation at low and high temperatures (–30~85℃, non-condensing)
• Optional PCAP 10-point touch; rugged design for industrial use

Typical applications

• Kiosk / AFC systems
• Industrial automation and HMI
• AFC equipment displays
• Vehicle-mounted special equipment displays
• Intelligent warehousing and security consoles

Technical specifications

• Screen size: 17-inch
• Active display area (mm): 337.920 (H) x 270.336 (V)
• Pixel pitch (mm): 0.12125 (H) x 0.36375 (V)
• Display mode: Normally White
• Resolution (pixels): 1280 x 1024
• Contrast ratio: 1000:1
• Colors: 16.7M
• Brightness: 1200 nits
• Backlight: LED
• Viewing angles (CR=10): 170° (H); 160° (V)
• Response time (Typ. Tr+Tf): 5 ms
• Touch screen: PCAP Touch (10 points) (optional)
• Signal connector: VGA / DVI-D
• Power input: DC12V 5A
• Touch controller: USB
• Operating temperature: -30~85℃ (non-condensing)
• Storage temperature: -30~85℃ (non-condensing)
• Relative humidity: 5~90% RH
