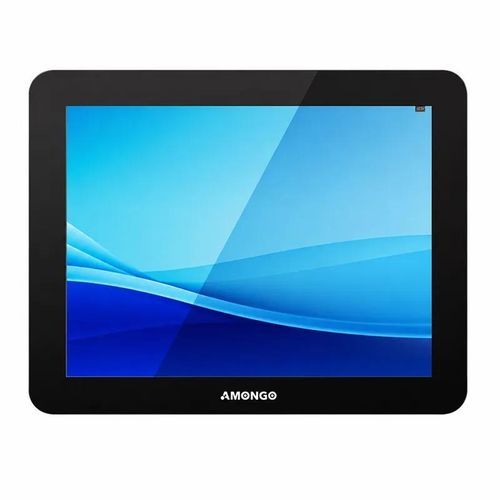

TFT-LCD monitor AMG-08OPBK01T1
multitouch screenLED backlightwith PCT touch screen

TFT-LCD monitor - AMG-08OPBK01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
TFT-LCD monitor - AMG-08OPBK01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
TFT-LCD monitor - AMG-08OPBK01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 2
TFT-LCD monitor - AMG-08OPBK01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 3
TFT-LCD monitor - AMG-08OPBK01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 4
Add to favorites
Compare this product

Characteristics

Technology
TFT-LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, digital, LED backlight
Applications
industrial, for industrial machines, for digital signage, for displays, for HMI interface, for IoT applications, versatile, for indoor use, multifunction, for cleaning
Display size
8"
Resolution
1024 x 768
Mounting
VESA mounting, embedded
Other characteristics
HDMI, USB
Width

162.05 mm
(6.3799 in)

Height

121.54 mm
(4.785 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Description
The AMG-08OPBK01T1 is an 8-inch industrial PCAP multi-touch display delivering up to 1000 nits of brightness. Designed for embedded or VESA mounting, it features a full-flat surface, LED backlight and HDMI input for easy integration in kiosks and equipment.

Key features
  • 8" PCAP 10-point multi-touch
  • Brightness up to 1000 nits with light sensor
  • Full-flat surface design for cleaning and integration
  • Supports embedded and VESA installation
  • HDMI signal input and USB touch controller


Typical applications
  • Automated fare collection (AFC)
  • Self-service kiosks and vending machines
  • Non-cash payment terminals and POS equipment
  • Industrial HMI and control panels


Technical specifications
  • Screen Size: 8-inch
  • Active Display Area (mm): 162.05(H) x 121.54(V)
  • Pixel Pitch (mm): 0.15825(H) x 0.05275(V)
  • Display Mode: Normally Black
  • Display Resolution (pixel): 1024 x 768
  • Contrast Ratio: 800:1
  • Display Color: 16.7M
  • Brightness: 1000 nits
  • Backlight: LED
  • Viewing Angles (CR=10): 170(H); 170(V)
  • Response Time (Typ. Tr+Tf): 25 ms
  • Touch Screen: PCAP Touch (10 points)
  • Signal Connector: HDMI
  • Power Input: DC 12V
  • Touch Controller: USB
  • Operating Temperature: 0 ~ 50°C (non-condensation)
  • Storage Temperature: -20 ~ 60°C (non-condensation)
  • Relative Humidity: 5 ~ 90% RH
