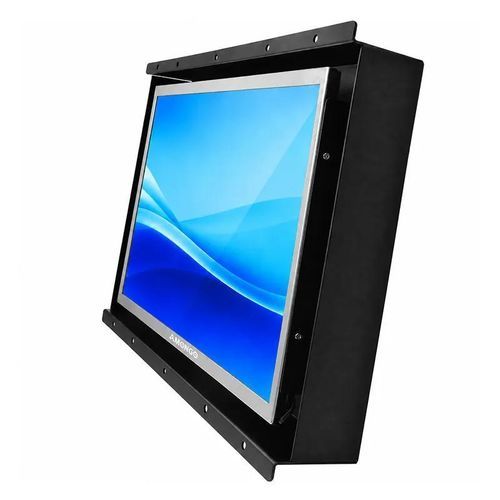

LCD monitor AMG-12OPEU01T4

resistive touch screenLED backlightcapacitive touch screen

Product overview
This 12.1-inch high-brightness industrial display delivers 1000 nits brightness with LED backlight. Optional capacitive/resistive touch and ambient light sensor are available. Interfaces include VGA and DVI; touch controller via USB. Designed for embedded or VESA mounting and for operation in extended temperature ranges.

Key features

• Sunlight-readable 1000 nits panel
• LED backlight with wide viewing angles (178°/178°)
• Optional touch screen and USB touch controller
• Supports embedded and VESA mounting
• Wide operating temperature: -30 ~ 85 °C (non-condensation)

Typical applications

• AFC equipment
• Vehicle-mounted special equipment displays
• Intelligent warehousing systems
• Security and control consoles

Technical specifications

• Screen Size: 12.1"
• Active Display Area: 246.0 (H) × 184.5 (V) mm
• Pixel Pitch: 0.3075 (H) × 0.3075 (V) mm
• Display Mode: Normally Black
• Resolution: 800 × 600 pixels
• Contrast Ratio: 1500:1
• Display Color: 16.2M / 262K
• Brightness: 1000 nits
• Backlight: LED
• Viewing Angles (CR=10): 178° (H); 178° (V)
• Response Time (Typ. Tr+Tf): 25 ms
• Touch Screen: Optional
• Signal Connector: VGA, DVI
• Power Input: DC 2.5
• Touch Controller: USB
• Operating Temperature: -30 ~ 85 °C (non-condensation)
• Storage Temperature: -30 ~ 85 °C (non-condensation)
• Relative Humidity: 5 ~ 90% RH
