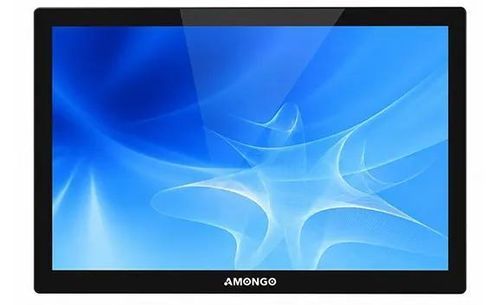

Indoor/outdoor information display panel AMG-21IPRV01T1

Description
This 21.5-inch sunlight-readable display delivers 1000 nits brightness and features an UV+AG coated surface to extend screen life and reduce reflections. It supports PCAP 10-point touch, HDMI input and DC 12V power, with an internal cooling fan and optional optical bonding for ruggedized installations.

Key features

• Sunlight readable (1000 nits)
• Ambient light sensor / Energy-saving
• Full-surface scratch-resistant design (Mohs hardness 7)
• UV protection and anti-glare AG coating
• Built-in cooling fan
• Optical bonding (optional)

Typical applications

• Outdoor digital billboards
• Public transportation information screens
• Campus interactive display windows
• Unmanned vending machines
• Semi-outdoor kiosks, AFC and industrial automation

Technical specifications

• Screen size: 21.5-inch
• Active display area (mm): 476.64 (H) x 268.11 (V)
• Pixel pitch (mm): 0.24825 x 0.24825
• Display mode: Normally Black
• Resolution: 1920 x 1080
• Contrast ratio: 3000:1
• Display color: 16.7 million
• Brightness: 1000 nits
• Backlight: LED
• Viewing angles (CR=10): 178° horizontal / 178° vertical
• Response time (Tr+Tf): 18 ms (typ.)
• Touch option: PCAP 10-point touch
• Signal input: HDMI
• Power input: DC 12V
• Touch controller interface: USB
• Operating temperature: 0 to 50 °C (non-condensing)
• Storage temperature: -20 to 60 °C (non-condensing)
• Relative humidity: 5% to 90% RH
