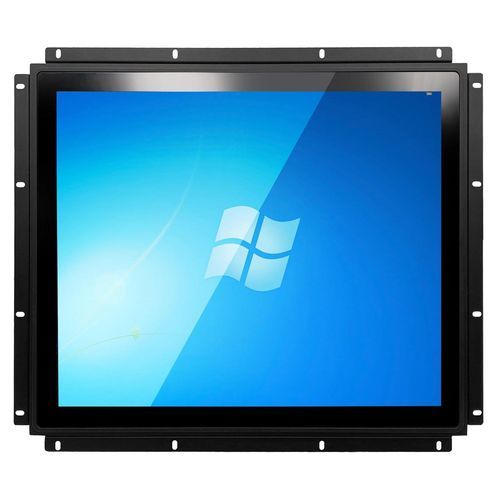

LCD monitor AMG-19OPTE01T3
multitouch screenLED backlightwith PCT touch screen

LCD monitor - AMG-19OPTE01T3 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-19OPTE01T3 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-19OPTE01T3 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 2
LCD monitor - AMG-19OPTE01T3 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 3
LCD monitor - AMG-19OPTE01T3 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 4
Add to favorites
Compare this product

Characteristics

Technology
LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, digital, LED backlight
Applications
industrial, for industrial machines, for digital signage, for displays, for HMI interface, for vehicles, POS, versatile
Display size
19"
Resolution
1280 x 1024
Mounting
panel-mount
Format
pixel pitch
Other characteristics
HDMI, VGA, DVI port, high-brightness, wide viewing angle, anti-glare
Width

376.32 mm
(14.8157 in)

Height

301.06 mm
(11.8528 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

Product overview
This 19-inch high-brightness display AMG-19OPTE01T3 supports optional 10-point PCAP capacitive touch and an ambient light sensor, designed for outdoor and industrial HMI applications.

Key features
  • Automatic backlight adjustment via ambient light sensor
  • Wide brightness range: 100–1000 nits for varied lighting conditions
  • Surface impact resistance: IK08
  • Surface hardness: Mohs 7H
  • Optional full lamination and AG (anti-glare) treatment

Typical applications
  • AFC equipment
  • Self-checkout and cashless payment terminals
  • Outdoor and semi-outdoor kiosks
  • Construction machinery and vehicle-mounted industrial HMIs
  • Outdoor industrial control panels

Specifications
  • Screen Size: 19"
  • Active Display Area: 376.32(H) x 301.06(V) mm
  • Pixel Pitch: 0.294(H) x 0.294(V) mm
  • Display Mode: Normally White
  • Resolution: 1280 x 1024 pixels
  • Contrast Ratio: 1000:1
  • Display Color: 16.7M
  • Brightness Range: 100–1000 nits
  • Backlight Type: LED
  • Viewing Angles (CR=10): 170° (H) / 160° (V)
  • Response Time: 10 ms (Typ. Tr+Tf)
  • Touch Option: 10-point PCAP capacitive touch
  • Signal Inputs: VGA, DVI-D, HDMI
  • Power Input: DC 12V
  • Touch Controller Interface: USB
  • Operating Temperature: -30 ~ 85℃ (non-condensation)
  • Storage Temperature: -30 ~ 85℃ (non-condensation)
  • Relative Humidity: 5 ~ 90% RH
  • Surface Impact Resistance: IK08
  • Surface Hardness: Mohs 7H
