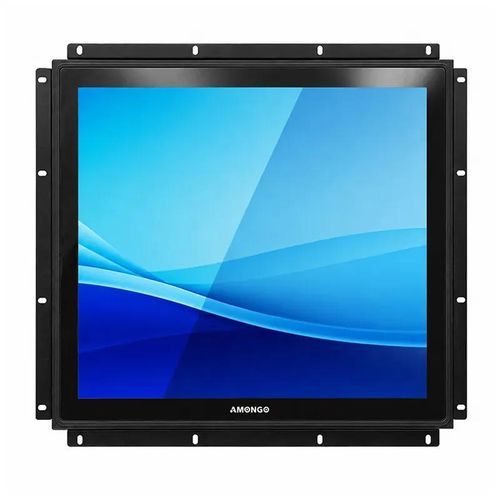

Multitouch screen monitor AMG-15OPTE01T4

LED backlightPCAP touchscreen15"

Product overview
This 15-inch industrial PCAP touch display (AMG-15OPTE01T4) provides 1000 nits brightness and an IP65-protected front surface for reliable operation in outdoor and semi-outdoor industrial environments.

Key features

• 1000 nits brightness with integrated ambient light sensor
• IP65 dust-proof and water-proof front surface
• Hardened glass with Mohs hardness 7, scratch-resistant
• PCAP 10-point multi-touch with USB touch controller
• LED backlight, sunlight-readable
• Wide operating temperature range for industrial use

Typical applications

• Automated fare collection (AFC) equipment
• Self-checkout and cashless payment terminals
• Outdoor and semi-outdoor kiosks
• Construction and heavy machinery HMIs
• Vehicle-mounted industrial control panels
• Outdoor industrial control cabinets

Technical specifications

• Model: AMG-15OPTE01T4
• Screen size: 15-inch
• Active display area: 376.32 (H) × 301.06 (V) mm
• Resolution: 1024 × 768 pixels
• Pixel pitch: 0.297 × 0.297 mm
• Display mode: Normally White
• Brightness: 1000 nits
• Backlight: LED
• Contrast ratio: 800:1
• Color depth: 16.7M
• Viewing angles (CR=10): 160° H / 160° V
• Response time: 8 ms (typ. Tr+Tf)
• Touch: PCAP 10-point multi-touch (USB)
• Signal inputs: VGA, DVI-D, HDMI
• Power input: DC 12V
• Touch controller: USB
• Surface protection: IP65; Mohs hardness 7
• Operating temperature: -20 ~ 70 °C (non-condensing)
• Storage temperature: -30 ~ 80 °C (non-condensing)
• Relative humidity: 5 ~ 90 % RH
