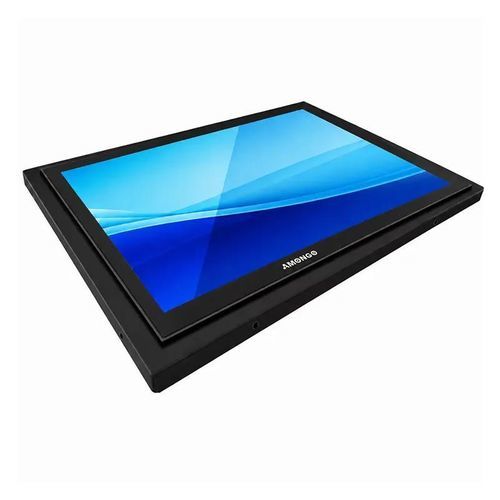

LCD monitor AMG-10OPGD01T1multitouch screenLED backlightPCAP touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP touchscreen, multitouch screen, LED backlight
- Applications
- for industrial machines, outdoor, for digital signage, for HMI interface
- Display size
- 10.4"
- Resolution
- 1024 x 768
- Mounting
- panel-mount
- Other characteristics
- HDMI, USB, aluminum, IP65, waterproof, dust-proof, vandal-proof
- Width
211.2 mm
(8.315 in)- Height
158.4 mm
(6.2362 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Product overview
This 10.4-inch industrial display provides 1000 nits brightness with UV+AG coating and optical bonding to improve outdoor readability and extend panel life. The unit features a rigid aluminum profile front frame, PCAP multi-touch input and IP65 ingress protection for dust and water resistance, suited for kiosks, AFC and industrial control equipment.
Key features
Typical applications
Specification
This 10.4-inch industrial display provides 1000 nits brightness with UV+AG coating and optical bonding to improve outdoor readability and extend panel life. The unit features a rigid aluminum profile front frame, PCAP multi-touch input and IP65 ingress protection for dust and water resistance, suited for kiosks, AFC and industrial control equipment.
Key features
- Aluminum profile front frame
- PCAP multi-touch (10 points)
- Optical bonding for improved durability and contrast
- UV+AG anti-glare/anti-UV coating
- IP65 rated: waterproof, dust-proof, vandal-resistant
- LED backlight with 1000 nits brightness
- Interfaces: HDMI signal, USB touch controller; Power: DC 12V
Typical applications
- AFC (automatic fare collection)
- Industrial equipment and HMIs
- Kiosks, outdoor terminals and information displays
Specification
- Screen Size: 10.4-inch
- Active Display Area (mm): 211.2 (H) x 158.4 (V)
- Pixel Pitch (mm): 0.20625 (H) x 0.20625 (V)
- Display Mode: Normally White
- Resolution (pixels): 1024 x 768
- Contrast Ratio: 900:1
- Display Color: 16.7M
- Brightness: 1000 nits
- Backlight: LED
- Viewing Angles (CR=10): 150° (H); 150° (V)
- Response Time (Typ. Tr+Tf): 16 ms
- Touch Screen: PCAP touch, 10 points
- Signal Connector: HDMI
- Power Input: DC 12V
- Touch Controller Interface: USB
- Operating Temperature: -10 ~ 60°C (non-condensing)
- Storage Temperature: -30 ~ 80°C (non-condensing)
- Relative Humidity: 5 ~ 90% RH
