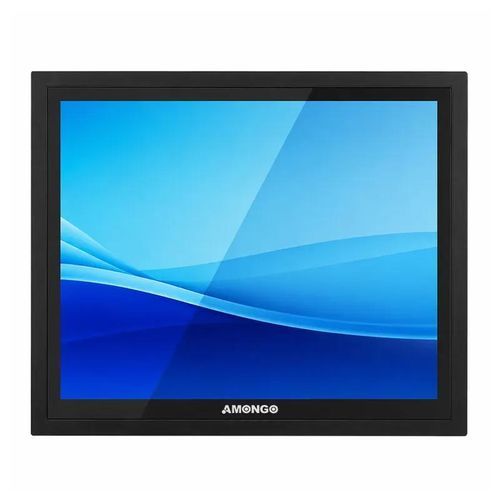

Multitouch screen monitor AMG-10IPYZR1T1

LED backlightPCAP touchscreenfor digital signage

Product description
This 10.4-inch industrial high-brightness display features UV-protection and a PCAP multi-touch interface to extend service life and support interactive industrial applications.

Key features

• Convex full flat fillet design
• PCAP multi-touch (10 points)
• Surface protection: IP65 waterproof and dust-proof
• Surface hardness: Mohs 7
• High brightness with ambient light sensor
• Reliable start and operation at low temperature

Typical applications

• Kiosks
• Industrial automation panels

Specification
Screen Size: 10.4"
Active Display Area (mm): 211.2(H) x 158.4(V)
Pixel Pitch (mm): 0.20625(H) x 0.20625(V)
Display Mode: Normally White
Display Resolution (pixel): 1024 x 768
Contrast Ratio: 900:1
Display Color: 16.7M
Brightness: 1000 nits
Backlight: LED
Viewing Angles (CR=10): 150°(H); 150°(V)
Response Time (Typ. Tr+Tf): 16 ms
Touch Screen: PCAP Touch (10 points)
Signal Connector: DP / HDMI / LVDS
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: -20 ~ 70°C (non-condensation)
Storage Temperature: -30 ~ 80°C (non-condensation)
Relative Humidity: 5 ~ 90% RH

Technical specifications

• Model: AMG-10IPYZR1T1
• Screen size: 10.4"
• Resolution: 1024 x 768
• Brightness: 1000 nits
• UV-protection to extend screen service life
• Touch: PCAP multi-touch, 10 points, USB touch controller
• Surface protection: IP65 waterproof & dust-proof
• Surface hardness: Mohs 7
• Backlight: LED
• Signal interfaces: DP / HDMI / LVDS
• Power input: DC 12V
• Viewing angles: 150° horizontal / 150° vertical (CR=10)
• Contrast ratio: 900:1
• Display color: 16.7M
• Response time: 16 ms (Typ. Tr+Tf)
• Operating temperature: -20 ~ 70°C (non-condensation)
• Storage temperature: -30 ~ 80°C (non-condensation)
• Relative humidity: 5 ~ 90% RH
