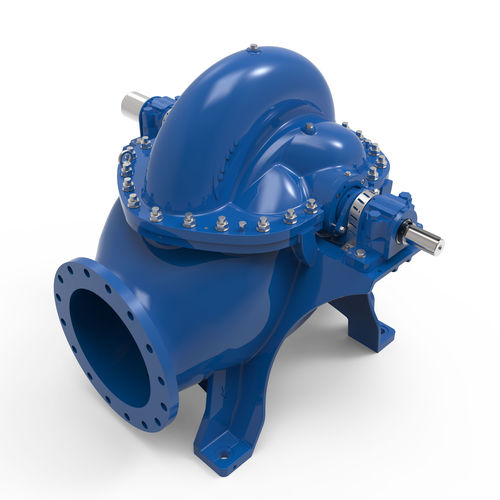

Split-case pump ASP Series
watercentrifugalindustrial

split-case pump
split-case pump
split-case pump
split-case pump
split-case pump
split-case pump
Add to favorites
Compare this product


Characteristics

Media
water
Technology
centrifugal
Domain
industrial, for water treatment, for the paper industry
Applications
irrigation, circulation, for power stations, cooling
Other characteristics
single-stage, horizontal mount, high-efficiency, double-aspiration, in-line, split-case, axial
Flow

Min.: 0 m³/h (0 ft³/h)

Max.: 40,000 m³/h (1,412,586.6689 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 25 bar (362.594 psi)

Head

Min.: 0 m (0'00")

Max.: 250 m (820'02")

Power

7,000 kW (9,517.35 hp)

Description

ANDRITZ split case pumps from the ASP series can be used in various fields of applicationsuch as power stations, pulp and paper mills, water and desalination plants. Their construction and design do not only ensure an easy and fast maintenance, but also excellent NPSH values and energy savings. ANDRITZ split case pumps from the ASP series meet the highest customer demands in terms of efficiency, long service life, maintenance friendliness, and economy. With efficiencies of over 90%, they help to save valuable energy. All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values. Due to the axial split case design, maintenance is fast and easy. Designed with a double-flow radial impeller and in-line casing, the pump can be horizontally or vertically installed (with horizontal installation, the motor can be placed on the left or right). These pumps can be used in a wide range of industrial processes. In the water sector, ANDRITZ split case pumps operate in water treatment and water supply systems as well as in irrigation, flood control, and desalination. They can also be used as circulation water or cooling water pumps for power stations, industrial plants and district heating networks. As plant and equipment supplier to the pulp and paper industry, ANDRITZ also manufactures spilt case pumps to function as cleaner and headbox pumps. ANDRITZ fan pumps convey stock suspensions with consistencies of up to 2%. They are characterized by low pulsation and very high efficiencies. For more information on our split case pump please have a look at our brochures in the sidebar or contact us directly.
