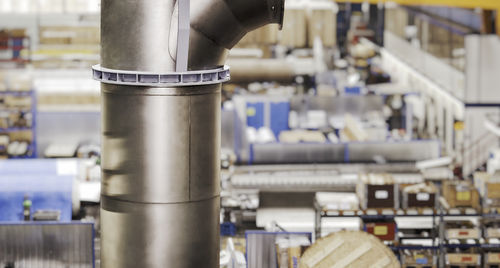

Line shaft pump VLSP series
waterturbineirrigation

line shaft pump
line shaft pump
line shaft pump
line shaft pump
Add to favorites
Compare this product


Characteristics

Media
water
Technology
turbine
Applications
irrigation, for power stations, cooling, drainage, feed
Other characteristics
axial, single-stage, multi-stage, radial, mixed-flow, vertical, line shaft
Flow

Max.: 70,000 m³/h (2,472,026.6705 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Head

80 m, 120 m (262'05")

Power

10,000 kW (13,596.21 hp)

Description

ANDRITZ vertical line shaft pumps, VLSP series, are available in different designs, with adjustable angle impellers and materials optimized for service conditions and customer requirements. These pumps can be used for various operations and applications such as water supply, flood control, desalination and in power stations. ANDRITZ vertical line shaft pumps, VLSP series, can installed for a wide range of different industrial processes. They are used in water transport for irrigation and drainage as well as drinking and industrial water supply. Additionally, these pumps can also function as cooling water pumps or flue gas desulphurization pumps for power stations. Finally, ANDRITZ vertical line shaft pumps from the VLSP series are used as seawater intake pumps for desalination plants. These pumps transport many different media and must have various properties, depending on the medium concerned. That is why the choice of material and suitable finishing are the determining factors in the functioning and stability of the pump. Thus, depending on the area of application, ANDRITZ vertical line shaft pumps from the VLSP series are designed as radial, axial, or mixed flow pumps. Similarly, the choice of material is customized ranging from cast iron, cast steel, non-alloyed and low-alloy steel grades, stainless CrNi steel grades, or duplex and super duplex steel grades. ANDRITZ also offers a complete program of impeller shapes for all combinations of delivery rates and heads, according to specific speeds. For more information on our vertical line shaft pumps, VLSP series, please have a look at our brochures in the sidebar or contact us directly.

VIDEO

Catalogs

No catalogs are available for this product.

See all of ANDRITZ‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
