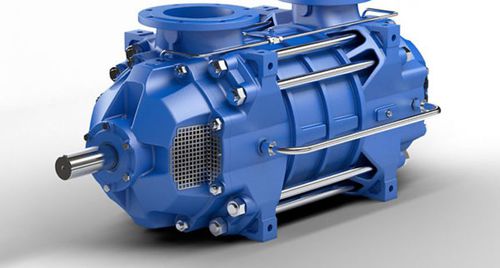

Wastewater pump MP Series
centrifugalindustrialirrigation

wastewater pump
wastewater pump
wastewater pump
wastewater pump
wastewater pump
wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Media
wastewater
Technology
centrifugal
Domain
industrial
Applications
irrigation, circulation, boiler supply, high-pressure, drainage, feed
Other characteristics
with closed impeller, horizontal mount, multi-stage, modular, vertical
Flow

Min.: 0 m³/h (0 ft³/h)

Max.: 400 m³/h (14,125.8667 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450.377 psi)

Head

Min.: 0 m (0'00")

Max.: 950 m (3116'09")

Power

600 kW (815.77 hp)

Description

ANDRITZ high-pressure pumps are designed for highest flexibility. Numerous horizontal and vertical models allow for efficient building designs. A variety of material and sealing versions guarantee optimal adaptability to the medium. Different hydraulic systems for each pump size enable a selection at the best efficiency point. These pumps are used for various high-pressure municipal and industrial applications, e.g. water supply, irrigation, circulation, boiler feed, and drainage. The high standard of the ANDRITZ multi-stage high-pressure pumps from the MP series is based on decades of experience in designing hydraulic machines and on extensive process know-how. The pumps are installed for conveying clean and slightly contaminated media such as cold and hot water, condensate, deionized water, oils, and suspensions. The high-pressure pumps in the MP pump series are designed according to a strict modular system. With this system, different design variants can be supplied according to the customer‘s requirements quickly, easily and economically, without customizing and using a minimum number of components. For more information on our high-pressure pumps from the MP series please have a look at our brochures in the sidebar or contact us directly.
