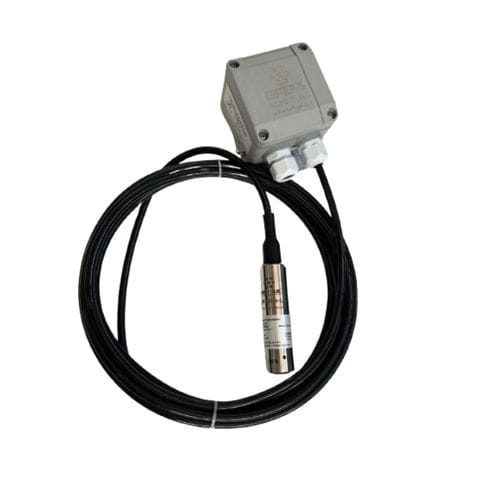

Hydrostatic level transmitter AI.Hydro-LT
for waterfor oilfor high-viscosity liquids

Hydrostatic level transmitter - AI.Hydro-LT - ASIT ITALIA - for water / for oil / for high-viscosity liquids
Hydrostatic level transmitter - AI.Hydro-LT - ASIT ITALIA - for water / for oil / for high-viscosity liquids
Hydrostatic level transmitter - AI.Hydro-LT - ASIT ITALIA - for water / for oil / for high-viscosity liquids - image - 2
Add to favorites
Compare this product
Go to the ASIT ITALIA website for more information

Characteristics

Technology
hydrostatic
Medium
for water, for oil, for high-viscosity liquids, for fuel, for aggressive liquids
Interface
4-20 mA, 2-wire, HART, RS-485
Applications
for vessels, for industrial applications, for monitoring, for the food and beverage industry, fuel tank, for CSO monitoring, for sumps, for medical applications, for corrosive environments, for basin, for silo, for the food industry, for the pharmaceutical industry, for marine applications, for fill monitoring, for hygienic applications, for atmospheric vessels, for food applications
Approvals
CE
Other characteristics
stainless steel, submersible, high-precision, corrosion-resistant, rugged, programmable, temperature-compensated, chemical-resistant, IP68
Level range

Max.: 200 m
(656'02" )

Min.: 1 m
(3'03" )

Process pressure

Max.: 20,000 mbar
(290.08 psi)

Min.: 100 mbar
(1.45 psi)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Description

AI.Hydro-LT is the ideal solution for those seeking precision and maximum reliability in liquid level measurement in tanks. Designed to operate in harsh conditions, it is a completely sealed device with an IP68 rating, perfect for industrial, civil, and naval applications.

Product Strengths
Superior Accuracy: Based on piezo-resistive technology, it guarantees an accuracy of 0.25% FS and high stability (±0.2% FS/year), ensuring consistent measurements over time.
Marine Reliability: Thanks to construction materials such as stainless steel (SS304/SS316L) and an AISI 316L diaphragm, the sensor is particularly resistant to corrosion and is RINA certified for use in the naval sector.
Configuration Flexibility: Wide choice of measurement ranges (from 0-1 m to 0-50 mH2O) and various types of process connections (flanged or threaded) to adapt to any type of tank.
Smart & Connected: Supports the HART protocol and is programmable via a dedicated modem and smartphone app, facilitating remote management and diagnostics.

Main Technical Specifications
Output Signal: 4-20 mA (available with 2-wire HART technology)
Power Supply: 12 ~ 30 VDC
Cable Material: 7.5 mm PUR, suitable for prolonged immersion
Operating Range: Temperature compensated from -10°C to +70°C
Compact Dimensions: Sensor body 124 mm long and 26 mm in diameter for easy installation even in limited spaces

Fields of Application
Naval Industry: Monitoring of onboard tanks.
Water Supply: Level management in tanks and wells.
Industry: Process control and storage of fluids compatible with stainless steel.
