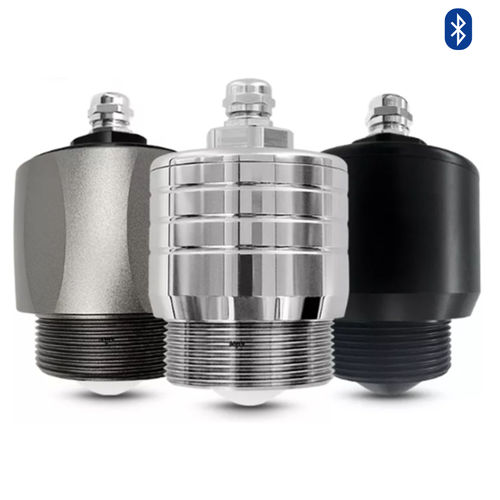

Microwave level transmitter AI.Easy-RADAR

for liquids4-20 mA2-wire

AI.Easy-RADAR is a level meter with modulated microwave technology. It is a high-performance instrument and, thanks to its high operating frequency,
guarantees excellent measurement accuracy.
The instrument is supplied complete with a bracket and locking ring.
The main advantages are:
The millimeter-wave RF chip allows for a more compact RF architecture, a higher signal-to-noise ratio, and a smaller blind spot.
The 5 GHz operating bandwidth allows for greater resolution and measurement accuracy.
Thanks to the integrated lens design, which is compact in size, the focus is only 6°, thus ensuring minimal interference from the surrounding installation environment.
It operates with low energy consumption.
Equipped with Bluetooth communication for easy configuration, even from a smartphone.

Transmission frequency: 76GHz~81GHz
Measurement range: 65 m
Measurement accuracy: ± 1 mm
Antenna focus: 6°
Output: 4-20 mA/Hart (two-wire/four-wire) or RS485/Modbus
Operating temperature: -30 ~ 75°C
Material: POM/Aluminum alloy/Stainless steel
Antenna type: Lens antenna
Supplied cable length: 10 m
Protection rating: IP68
Process pressure: -0.1 ~ 0.1 MPa
Installation method: Bracket/Thread

Please specify when ordering:
Material:
1. POM
2. Aluminum alloy
3. Stainless steel

Output:
A. 4-20 mA Hart modem
B. RS485 Modbus

Measurement range:
7. Up to 15 meters (10 cm blind spot)
8. Up to 65 meters (30 cm blind spot)
9. Above 65 meters (please specify)
