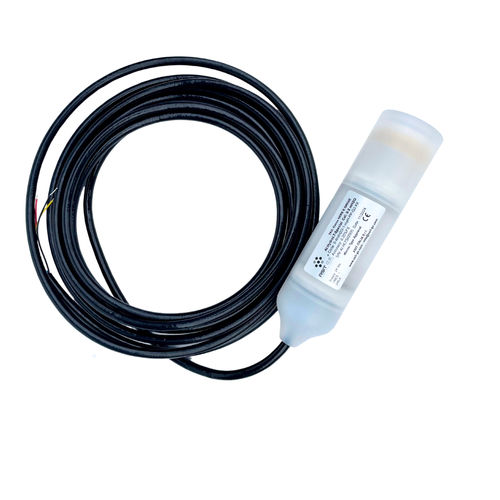

Hydrostatic level transmitter AI.HydroLT-SPECIALfor waterfor corrosive liquidsfor oil
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for water, for corrosive liquids, for oil, for wastewater, for high-viscosity liquids, for sludge, for fuel, for aggressive liquids
- Interface
- 4-20 mA, 2-wire, HART, RS-485
- Applications
- for atmospheric vessels, for storage tanks, for sumps, for industrial applications, for the food and beverage industry, for CSO monitoring, rugged, for corrosive environments, for silo, for marine applications, for the pharmaceutical industry, for medical applications, for food applications, for monitoring, for hygienic applications, for basin
- Approvals
- CE
- Other characteristics
- programmable, submersible, compact, high-precision, corrosion-resistant, rugged, smart, temperature-compensated, chemical-resistant, PVC, IP68
- Level range
Min.: 0.5 m
(1'07" )Max.: 200 m
(656'02" )- Process pressure
Min.: 0 bar
(0 psi)Max.: 20 bar
(290.08 psi)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
AI.HydroLT-SPECIAL is the ultimate professional solution for precise level monitoring in critical environments. Specifically designed to withstand aggressive chemicals, this submersible sensor combines robust construction with high technological reliability.
Why choose AI.HydroLT-SPECIAL?
Extreme Resistance: Thanks to the available PVDF or Polypropylene (PP) body and ceramic diaphragm, it is ideal for measuring acids, corrosive liquids, and wastewater (grey/black).
Accuracy and Stability: It offers an accuracy of 0.25% FS with excellent repeatability over time, minimizing the need for maintenance.
Anti-Deposit Design: The body shape is designed to prevent debris accumulation, keeping the diaphragm always clean and operational.
Naval Certification: This product is approved by RINA, making it the standard for applications in the nautical and industrial sectors.
Main Technical Specifications
Protection Rating: IP68 (sensor)
Signal Output: 4-20 mA (also available with HART protocol)
Power Supply: 12 ~ 30 VDC
Operating Temperature: -10°C to +70°C
Cable Material: PUR (Polyurethane) with integrated atmospheric compensation
Application Fields
Chemical Industry: Storage and dosing of acids and bases.
Naval Industry: Monitoring of wastewater and gray water tanks.
Water Treatment: Purification plants and aqueducts.
Why choose AI.HydroLT-SPECIAL?
Extreme Resistance: Thanks to the available PVDF or Polypropylene (PP) body and ceramic diaphragm, it is ideal for measuring acids, corrosive liquids, and wastewater (grey/black).
Accuracy and Stability: It offers an accuracy of 0.25% FS with excellent repeatability over time, minimizing the need for maintenance.
Anti-Deposit Design: The body shape is designed to prevent debris accumulation, keeping the diaphragm always clean and operational.
Naval Certification: This product is approved by RINA, making it the standard for applications in the nautical and industrial sectors.
Main Technical Specifications
Protection Rating: IP68 (sensor)
Signal Output: 4-20 mA (also available with HART protocol)
Power Supply: 12 ~ 30 VDC
Operating Temperature: -10°C to +70°C
Cable Material: PUR (Polyurethane) with integrated atmospheric compensation
Application Fields
Chemical Industry: Storage and dosing of acids and bases.
Naval Industry: Monitoring of wastewater and gray water tanks.
Water Treatment: Purification plants and aqueducts.
