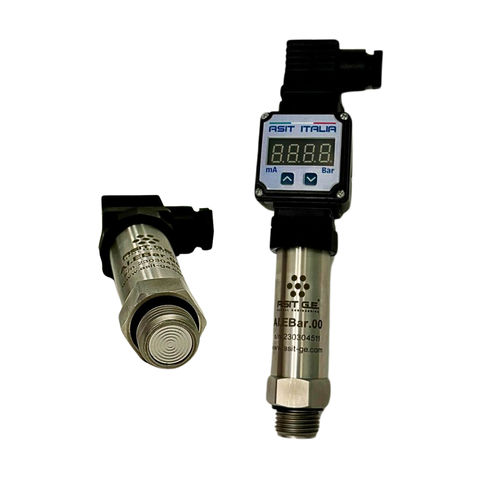

Hydrostatic level transmitter AI.EBar.00

for liquids4-20 mA2-wire

The AI.EBar.00 is a high-performance pressure transmitter designed to provide extremely stable, reliable, and precise measurements. Thanks to its robust stainless steel construction and compact size, it is the ideal solution for heavy-duty applications in the naval, industrial, chemical, and water supply sectors.

Strengths
Drinking Water Certification: Approved pursuant to Ministerial Decree No. 174 of April 6, 2004, it is suitable for installation in systems for the collection, treatment, and distribution of water intended for human consumption.
Maximum Measurement Versatility: Manages gauge, absolute, and sealed gauge pressures with ranges from 100 mbar to 100 bar.
Piezoresistive Technology: Uses a highly reliable sensing element that guarantees an accuracy of 0.25% FS and excellent long-term stability.
Ready to Use and Smart: Compact design that requires no external programming, yet compatible with HART Protocol and programmable via modem and smartphone app.
Resistance to Aggressive Fluids: AISI 316L diaphragm (optionally in Tantalum) for maximum chemical compatibility.

Fields of Application
Pressure measurement of liquids and gases in tanks.
Hydrostatic head monitoring.
Industrial automation and naval sector.
Water supply networks and water treatment plants.

Technical Specifications
Accuracy: 0.25% FS
Output Signals: 4-20mA (2-wire), 0-5V, 0-10V, HART
Materials: (Diaphragm/Body) AISI 316L / AISI 304 Stainless Steel
Operating Temperature: -30°C to +80°C (depending on connector)
Power Supply: 12-30 VDC
Protection Rating: IP65 (standard) / IP68 (with cable output)

Available Options
The AI.EBar.00 can be customized with various electrical connections (DIN43650, M12, or direct cable) and mechanical connections (flush or threaded diaphragm). A version with an integrated 4-digit digital display is also available for immediate local reading of parameters.
