Double block-and-bleed valve BV-DBB-Gballwith handwheelfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- with handwheel
- Function
- double block-and-bleed
- Media
- for water, for oil, for chemical products, for fuel
- Body
- stainless steel, carbon steel, steel, alloy, trunnion
- Applications
- for industrial applications, for the chemical industry, for process applications, for liquids, for pipelines, for the gas industry, cryogenic
- Number of channels
- 2-way
- Fluid specification
- for corrosive fluids, for aggressive media
- Associated function
- transfer
- Other characteristics
- compact
- DN
Min.: 50 mm
(1.969 in)Max.: 600 mm
(23.622 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 420 bar
(6,091.6 psi)
Description

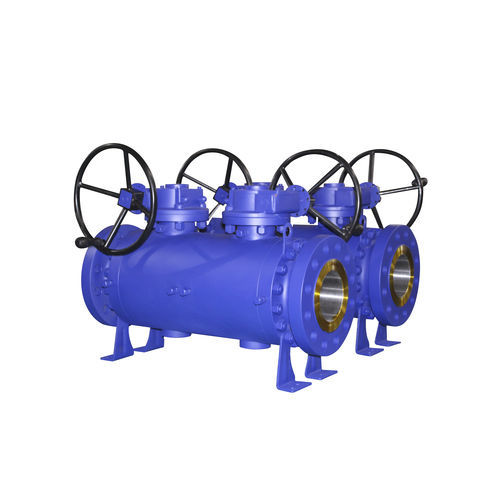

DBB Ball Valve
body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.)
end connection: RF/RTJ/BW
operation: Lever Gear motor/pneumatic actuators
product overview:Athena supplies trunnion mounted ball valves which are equipped with two balls in one body. The series can be designed in three-piece, long or short pattern to satisfy the different installation requirements. This compact one body design reduces the weight and requires space compared with installing two conventional valves when it achieves safer application.
